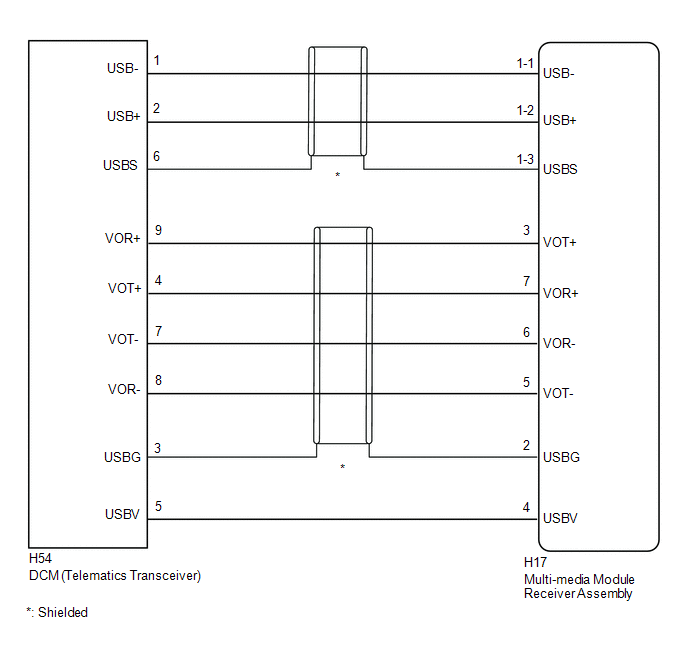

DCM Data Signal Circuit between Navigation ECU and DCM [08/2018 - 08/2021]: Wiring Diagram

GTY776666

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
