Removal [10/2015 - ]: Procedure

Refer to REMOVAL [10/2015 - 09/2016]  or REMOVAL [09/2016 - ]

See step  4 (10/2015 - 09/2016) or step  4 (09/2016 -)

• for 2WD:

  Refer to REMOVAL [10/2015 - ]

• for AWD:

  Refer to REMOVAL [09/2014 - ]

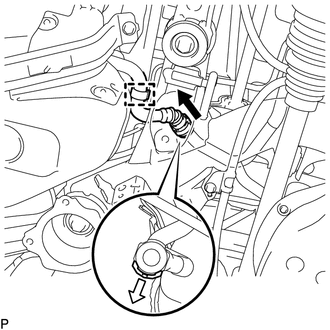

1. for LH side:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Disconnect the fuel tank main tube sub-assembly.

      Refer to PRECAUTION [10/2015 - ]

2. for RH side:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Disconnect the fuel tank main tube sub-assembly.

      Refer to PRECAUTION [10/2015 - ]

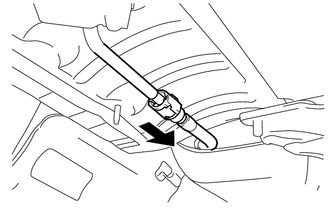

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Loosen the hose clamp and disconnect the fuel tank to filler pipe hose.

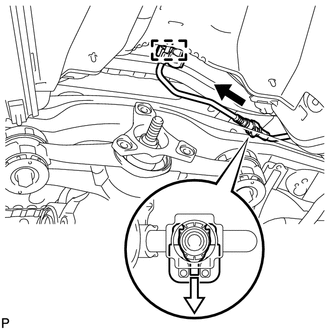

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Detach the clamp and disconnect the fuel cut off valve tube.

   Refer to PRECAUTION [10/2015 - ]

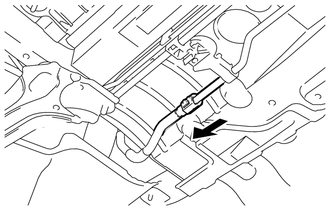

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Detach the clamp and disconnect the fuel tank breather tube.

   Refer to PRECAUTION [10/2015 - ]

Refer to PROCEDURE - Step 41

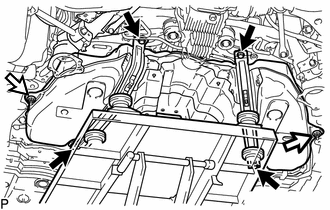

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Bolt
   	Nut

   Using an engine lifter and attachments, support the fuel tank assembly.

2. Remove the 2 nuts, 4 bolts and 2 No. 1 fuel tank bands.
3. Using an engine lifter, lower the fuel tank assembly and remove it.

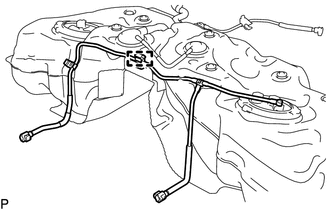

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Detach the No. 5 fuel tube clamp and remove the fuel tank return tube and fuel tank main tube sub-assembly from the fuel tank assembly.

2. Remove the No. 5 fuel tube clamp from the fuel tank assembly.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

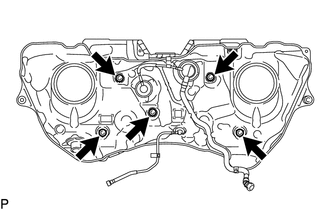

   Remove the 5 No. 6 fuel tank cushions from the fuel tank assembly.

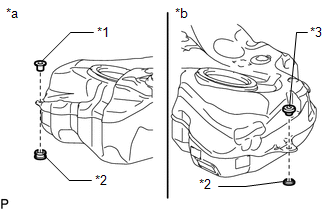

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Fuel Tank Bracket
   *2	Fuel Tank Cushion
   *3	Fuel Tank Cushion Set
   *a	RH side
   *b	LH side

   Remove the fuel tank bracket, 2 fuel tank cushions and fuel tank cushion set from the fuel tank assembly.

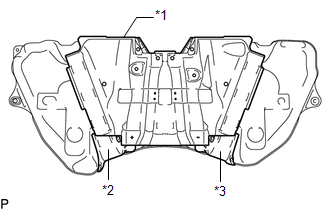

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 1 Fuel Tank Protector Sub-assembly
   *2	No. 2 Fuel Tank Protector
   *3	No. 3 Fuel Tank Protector

   Remove the No. 1 fuel tank protector sub-assembly from the fuel tank assembly.

2. Remove the No. 2 fuel tank protector and No. 3 fuel tank protector from the fuel tank assembly.
