Inspection [10/2015 - ]: Procedure

  1. INSPECT FUEL PUMP

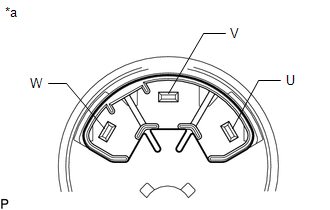

    1. GTY618531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Fuel Pump Assembly with Filter)

      Inspect the resistance of the fuel pump.

      1. Measure the resistance according to the value (s) in the table below.

        Standard Resistance

        Tester Connection Specified Condition
        U - V 0.05 to 3.0 Ω
        V - W 0.05 to 3.0 Ω
        U - W 0.05 to 3.0 Ω

        If the result is not as specified, replace the fuel pump.
