Removal [10/2015 - ]: Procedure

  1. REMOVE FUEL PUMP FILTER

    Refer to DISASSEMBLY [10/2015 - ]

  2. REMOVE FUEL MAIN VALVE ASSEMBLY

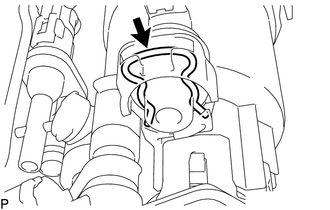

    1. GTY660218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the fuel main valve assembly (for Low Pressure.)

      1. Remove the clip from the fuel filter.
      2. Using a screwdriver, remove the fuel main valve assembly from the fuel filter.
        NOTE:

        Do not damage the fuel filter.

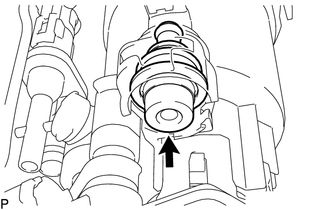

        GTY660217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Remove the 2 O-rings from the fuel main valve assembly.

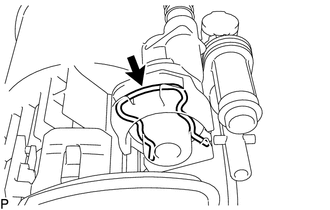

    2. GTY683017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the fuel main valve assembly (for High Pressure.)

      1. Remove the clip from the fuel filter.
      2. Using a screwdriver, remove the fuel main valve assembly from the fuel filter.
        NOTE:

        Do not damage the fuel suction plate sub-assembly.

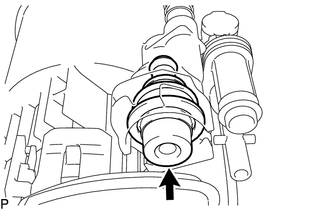

        GTY660214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Remove the 2 O-rings from the fuel main valve assembly.
