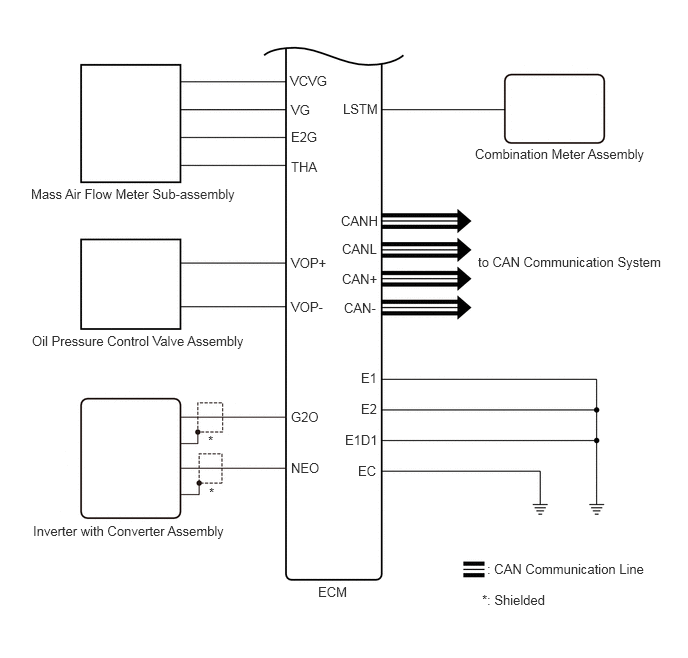

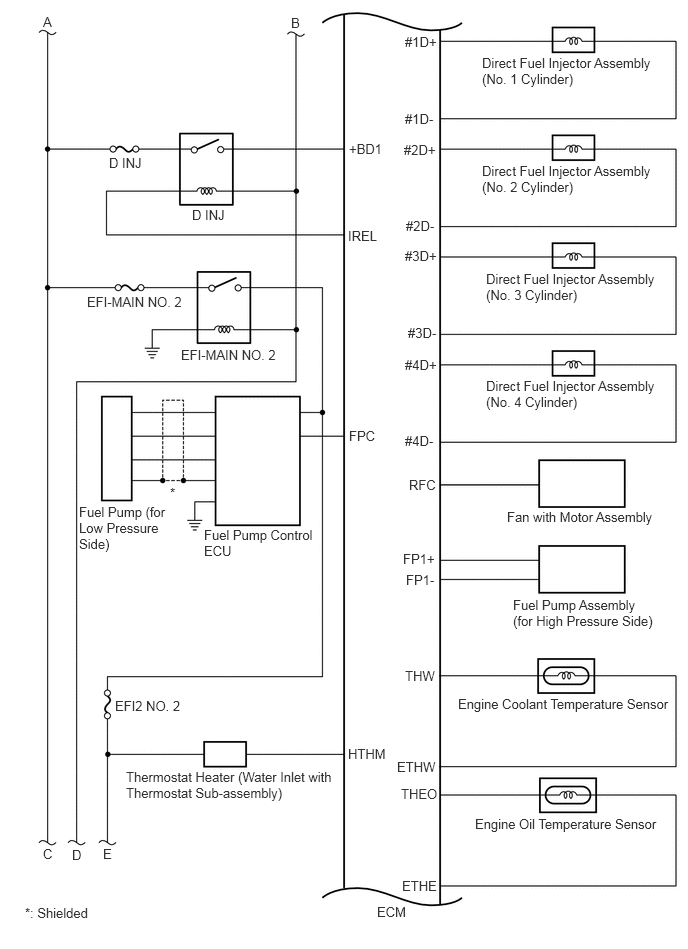

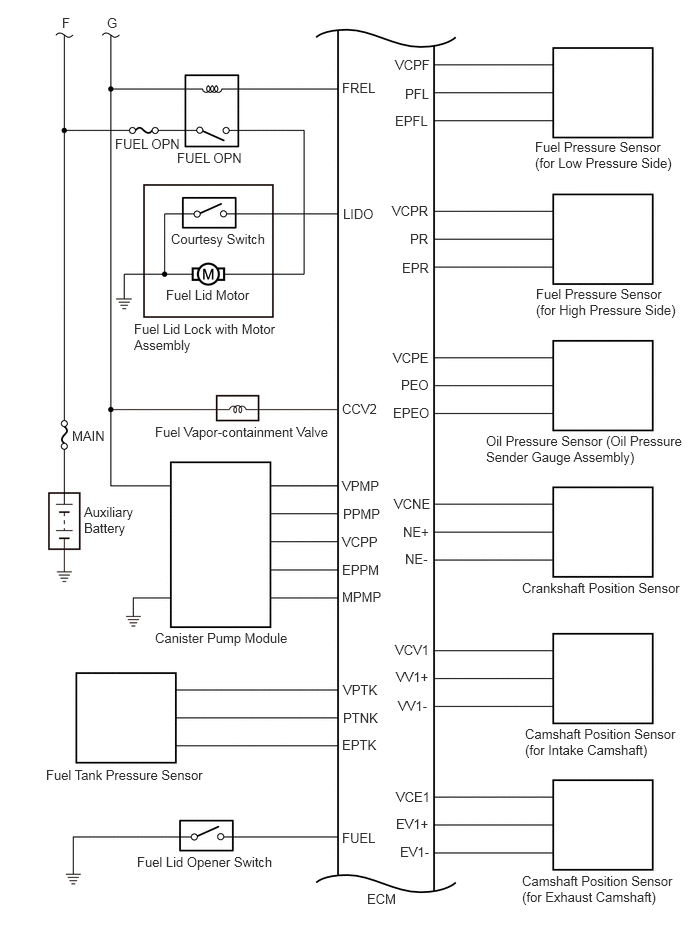

Home >> Lexus >> 2020 >> ES 300h Base >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System (A25A-FXS) - Diagnostics - Introduction (1 Of 6) >> SFI System >> System Diagram [06/2018 - 07/2019] >> System Diagram [06/2018 - 07/2019]
