Engine Control System (A25A-FXS) - Circuit Tests (2 Of 2) & Symptom Tests
>>
SFI System
>>
VC Output Circuit [07/2019 - 10/2019]
>>
Wiring Diagram
VC Output Circuit [07/2019 - 10/2019]: Wiring Diagram
For the circuit diagram of the ECM power source refer to the ECM power source circuit.
Refer to
WIRING DIAGRAM

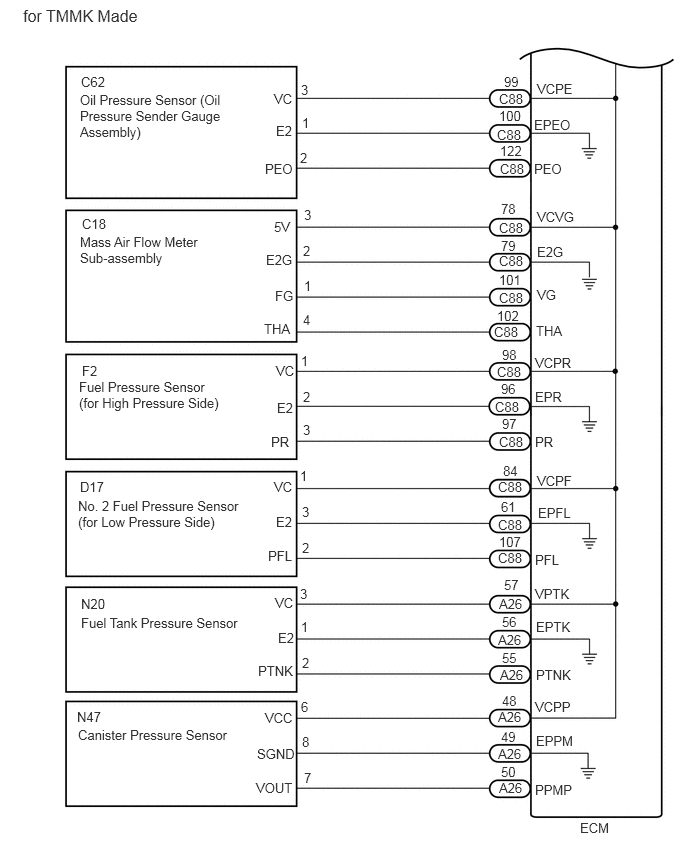

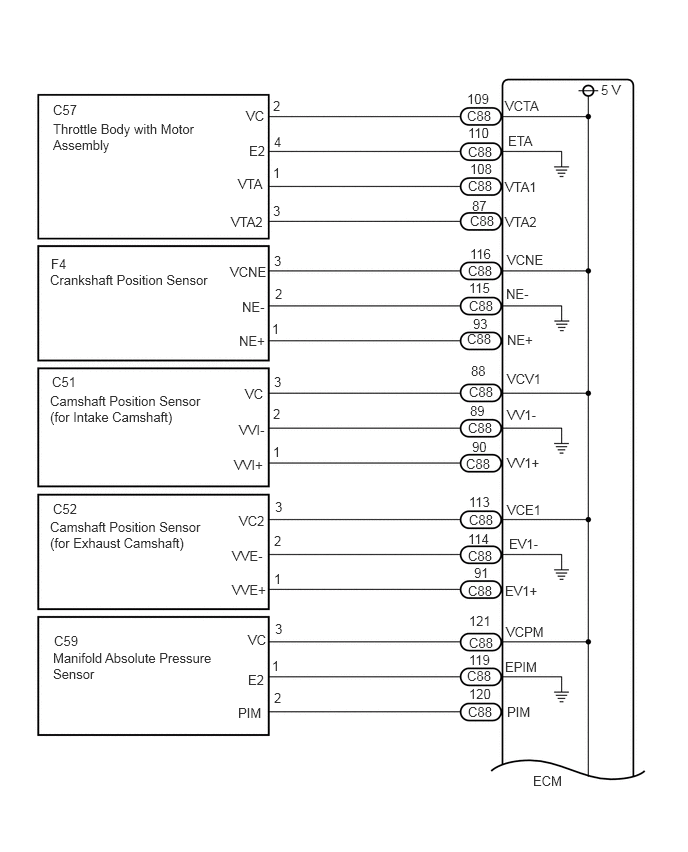

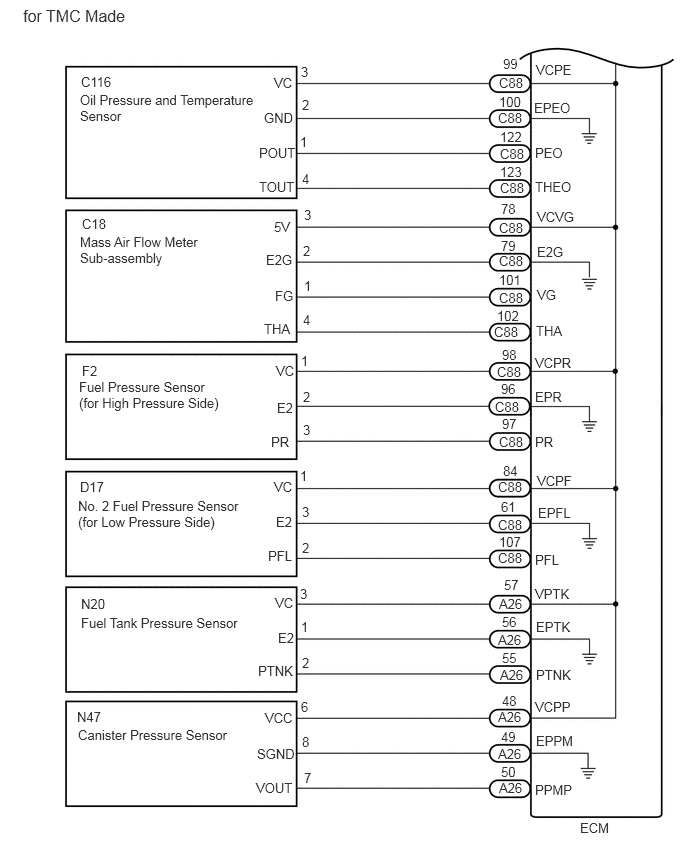

VC Output Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
