Home >> Lexus >> 2019 >> UX 250h Base >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> Lin Communication System (Diagnostic Codes) >> Lin Communication System >> DTC B2325: LIN Communication Bus Malfunction [10/2018 - ] >> Wiring Diagram

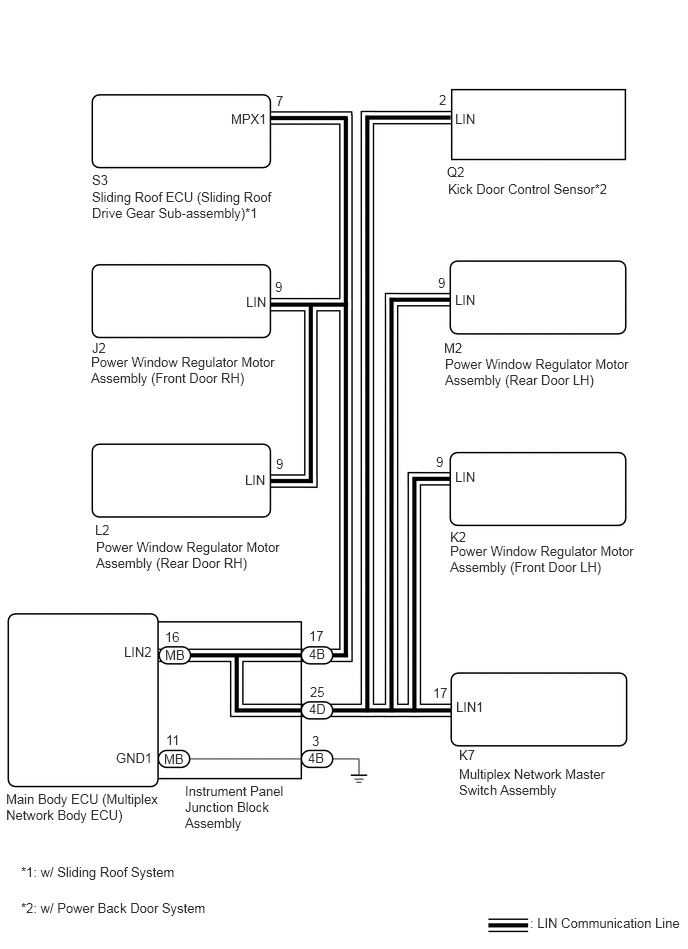

DTC B2325: LIN Communication Bus Malfunction [10/2018 - ]: Wiring Diagram

GTY826299

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
