Components [10/2018 - 07/2022]

Fig 1: Brake Master Cylinder (Gas) Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	OUTER COWL TOP PANEL SUB-ASSEMBLY	*2	WATER GUIDE PLATE RH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

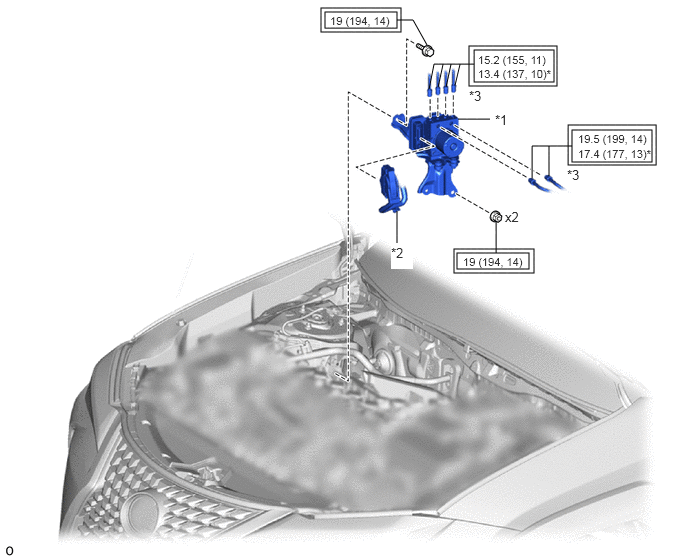

Fig 2: Brake Actuator (Gas) Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BRAKE ACTUATOR WITH BRACKET	*2	BRAKE ACTUATOR ASSEMBLY CONNECTOR
*3	BRAKE TUBE	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	*	For use with a union nut wrench

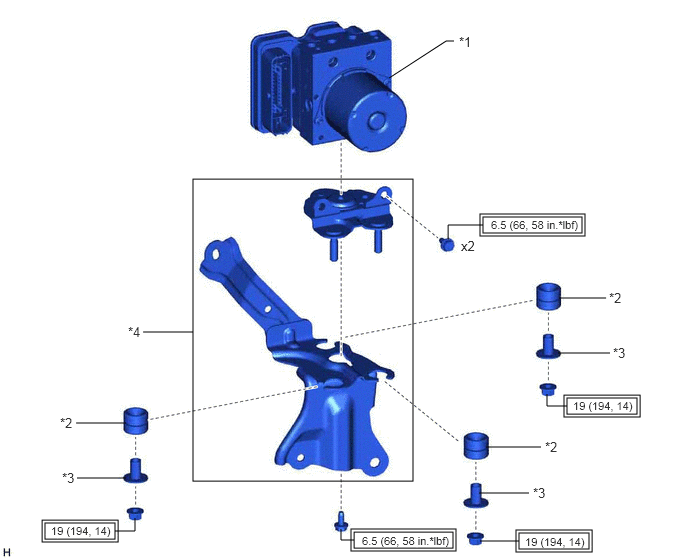

Fig 3: Brake Actuator (Gas) Replacement Components With Torque Specifications (3 Of 3)

*1	BRAKE ACTUATOR ASSEMBLY	*2	BRAKE ACTUATOR BRACKET CUSHION
*3	NO. 1 BRAKE ACTUATOR CASE COLLAR	*4	BRAKE ACTUATOR BRACKET ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	-	-
