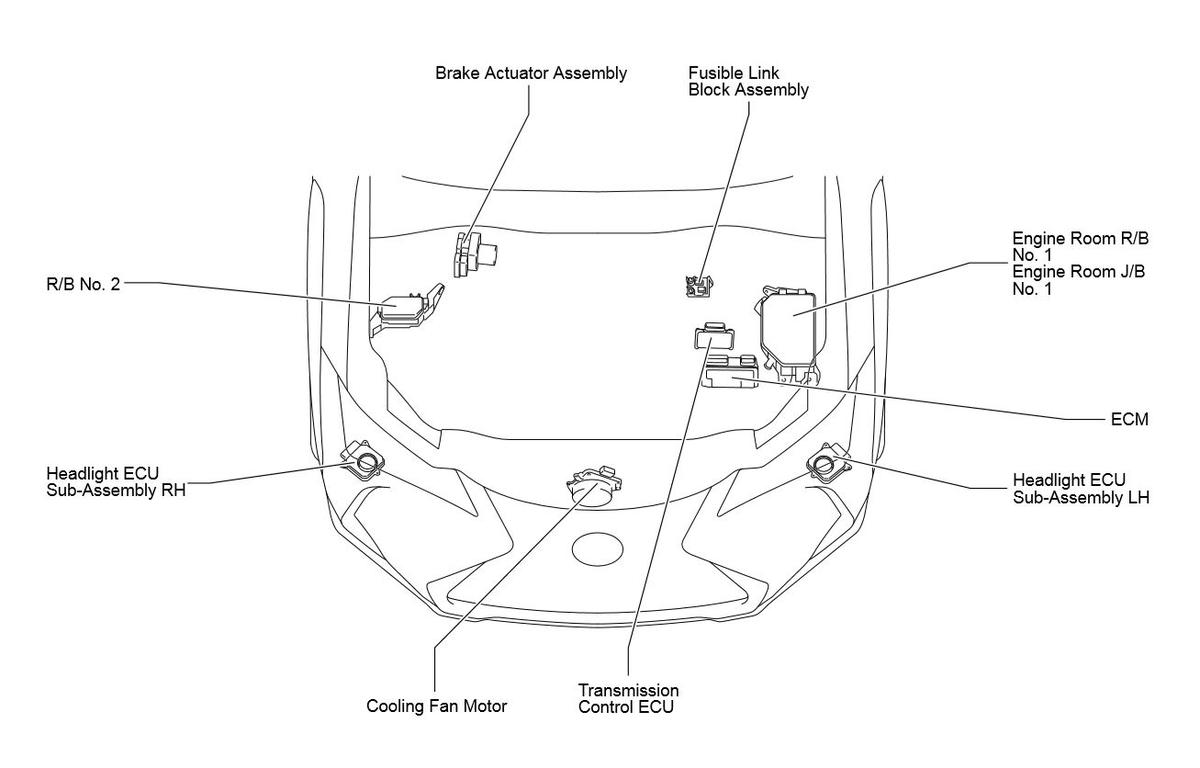

Engine Room Relay Block Assembly And Engine Room Junction Block Assembly No. 1 (M20A-FXS) - Front Fender Apron LH: Notes

For additional information, refer to Figure.

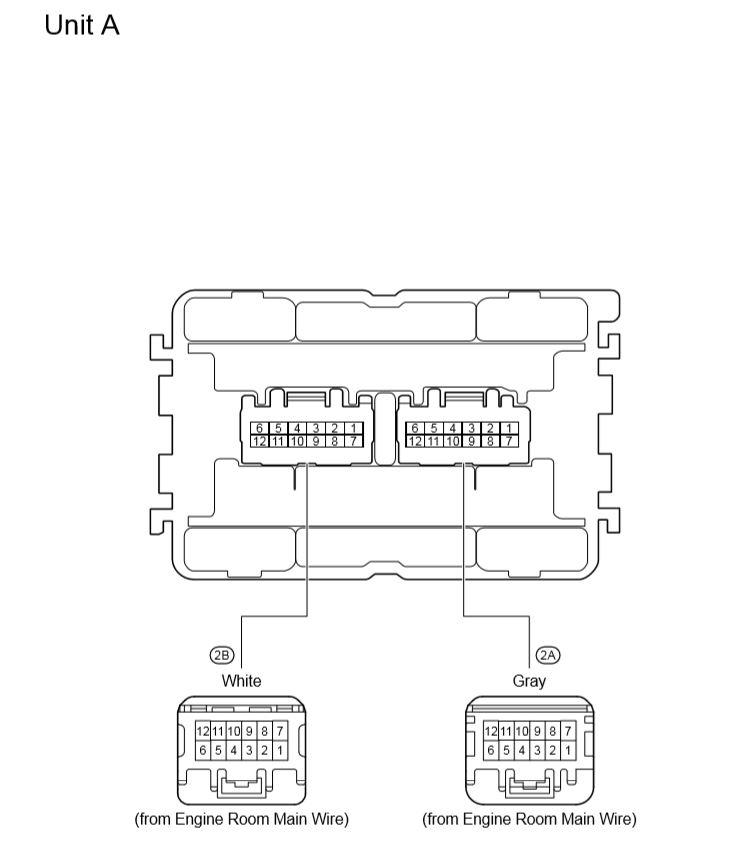

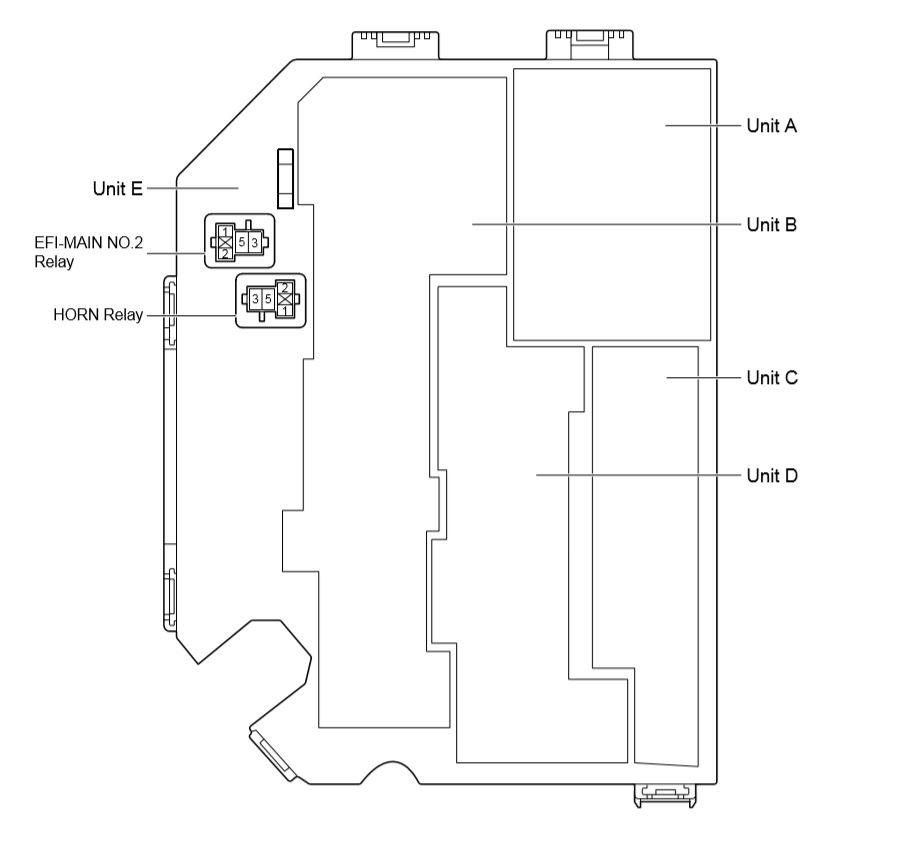

Fig 1: Engine Room R/B And J/B Assembly No. 1 (M20A-FXS) (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Engine Room R/B And J/B No. 1 (M20-FXS) Relay Identification

RELAY DESCRIPTION
EFI-MAIN NO. 1 Relay
S-HORN

Engine Room R/B And J/B No. 1 (M20A-FXS) Fuse Identification Legend

FUSE
7.5A	ABS NO. 2
7.5A	ABS NO. 3
7.5A	DRL
7.5A	ECU-ACC NO. 2
7.5A	ECU-IG2 NO. 1
7.5A	EFI NO. 3
7.5A	FOG FR
7.5A	H-LP SHADE
10A	ECU-IG1 NO. 5
10A	EFI NO. 1
10A	EFI NO. 2
10A	EFI NO. 4
10A	FUEL OPN
10A	H-LP LH
10A	H-LP RH
10A	HORN
10A	IGN
10A	MIR HTR
10A	S-HORN
10A	STRG HTR
10A	TV NO. 2
15A	DEICER
15A	INV W/PMP
15A	TV
20A	D INJ
20A	H-LP LH
20A	H-LP RH
20A	P/OUTLET NO. 2
20A	VVT
25A	EFI MAIN NO. 2
30A	ABS MTR NO. 1
30A	ABS MTR NO. 2
30A	ABS MTR NO. 3
30A	ABS-MAIN
30A	AMP
30A	EFI-MAIN NO. 1
30A	EFI-MAIN NO. 3
30A	EPB NO. 1
30A	FAN NO. 2
30A	H-LP CLN
30A	PBD
30A	S/HTR-MAIN
30A	WIPER
40A	DEF
50A	HTR
60A	FAN NO. 1
80A	EPS
80A	J/B-AM
120A	DC/DC

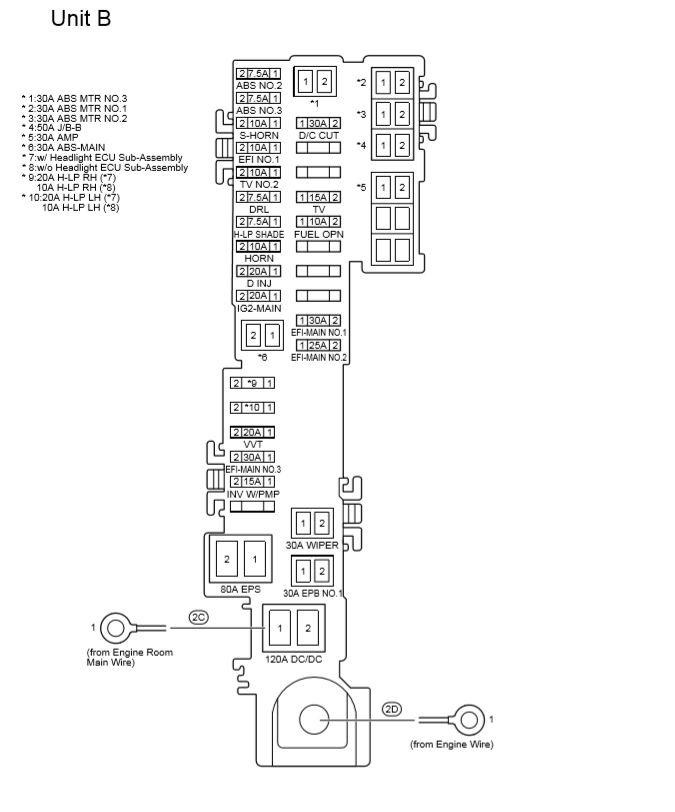

Fig 2: Engine Room R/B And J/B Assembly No. 1 (M20A-FXS) (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Room R/B And J/B Assembly No. 1 (M20A-FXS) (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

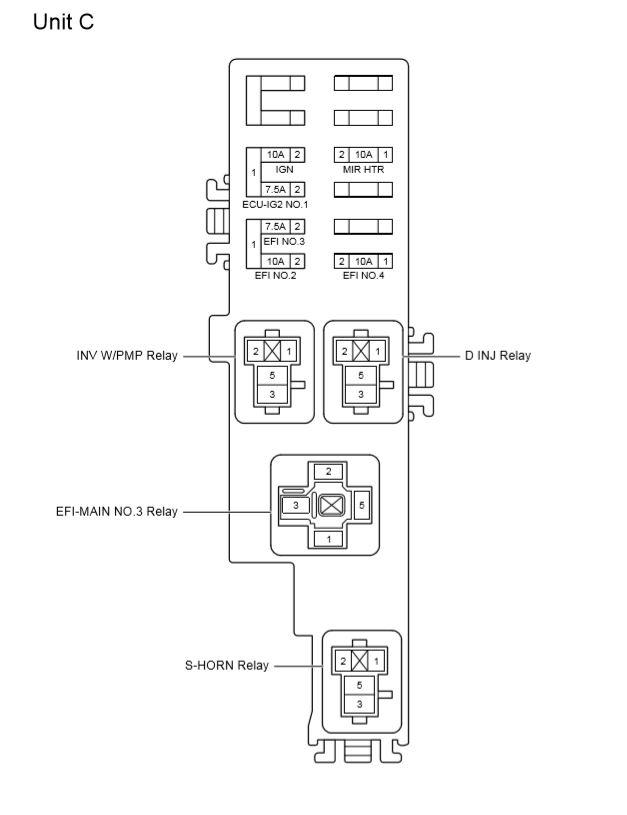

Fig 4: Engine Room R/B And J/B Assembly No. 1 (M20A-FXS) (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Engine Room R/B And J/B No. 1 (M20-FXS) Relay Identification

RELAY DESCRIPTION
EFI-MAIN NO. 3 Relay
D INJ Relay
S-HORN Relay
INV W/PMP Relay

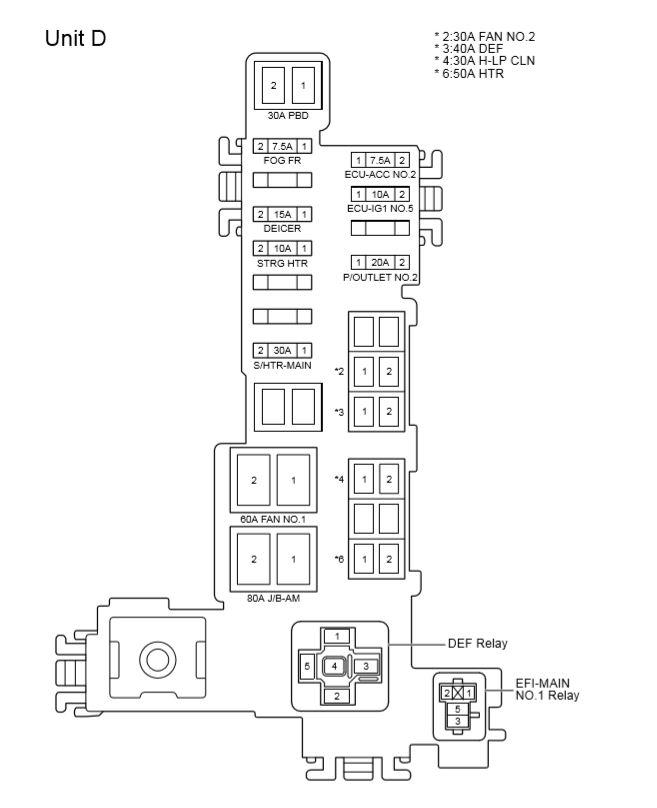

Fig 5: Engine Room R/B And J/B Assembly No. 1 (M20A-FXS) (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Engine Room R/B And J/B No. 1 (M20-FXS) Relay Identification

RELAY DESCRIPTION
DEF Relay
EFI-MAIN NO. 1 Relay
