Engine Room Relay Block Assembly And Engine Room Junction Block Assembly No. 1 (M20A-FKS) - Front Fender Apron LH: Notes

For additional information, refer to Figure.

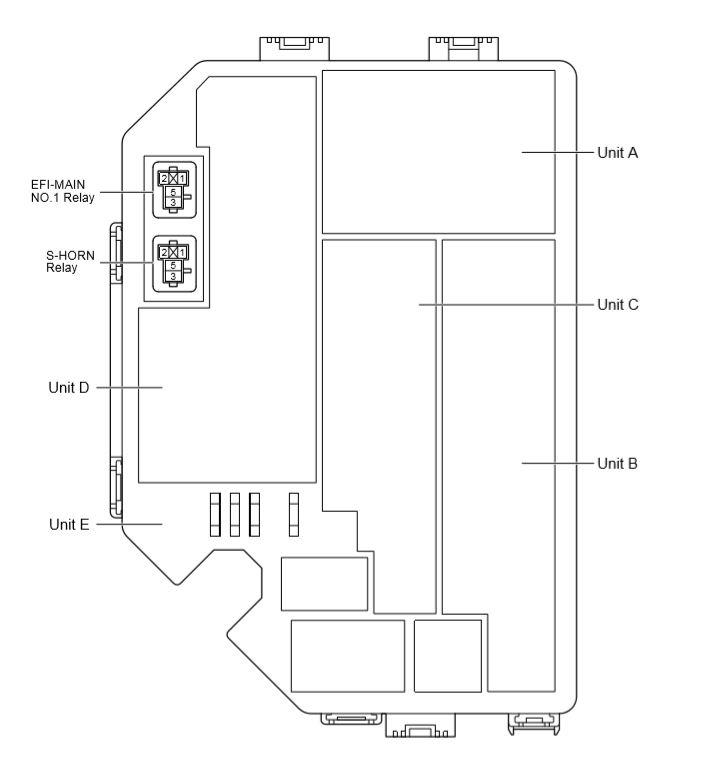

Fig 1: Engine Room R/B And J/B Assembly No. 1 (M20A-FKS) (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Engine Room R/B And J/B No. 1 (M20-FKS) Relay Identification

RELAY DESCRIPTION
EFI-MAIN NO. 1 Relay
S-HORN

Engine Room R/B And J/B No. 1 (M20A-FKS) Fuse Identification Legend

FUSE
5A	BATT-S
7.5A	DRL
7.5A	ECU-ACC NO. 2
7.5A	ECU-IG2 NO. 1
7.5A	ECU-IG2 NO. 2
7.5A	EFI NO. 3
7.5A	FOG FR
10A	ECU-IG1 NO. 5
10A	EFI NO. 1
10A	EFI NO. 2
10A	EFI NO. 4
10A	EFI NO. 5
10A	FUEL OPN
10A	H-LP LH
10A	H-LP RH
10A	HORN
10A	IGN
10A	MIR HTR
10A	S-HORN
10A	STRG HTR
10A	TV NO. 2
15A	DEICER
15A	TV
20A	D INJ
20A	H-LP LH
20A	H-LP RH
20A	IG2-MAIN
20A	IG2-MAIN
20A	P/OUTLET NO. 2
20A	VVT
25A	EFI-MAIN NO. 2
30A	ABS-MAIN
30A	AMP
30A	D/C CUT
30A	D/C CUT
30A	EFI-MAIN NO. 1
30A	EFI-MAIN NO. 3
30A	FAN NO. 1
30A	H-LP CLN
30A	PBD
30A	S/HTR-MAIN
30A	ST NO. 1
30A	WIPER
40A	DEF
50A	ABS MTR NO. 1
50A	HTR
50A	J/B-B
50A	J/B-B
80A	EPS

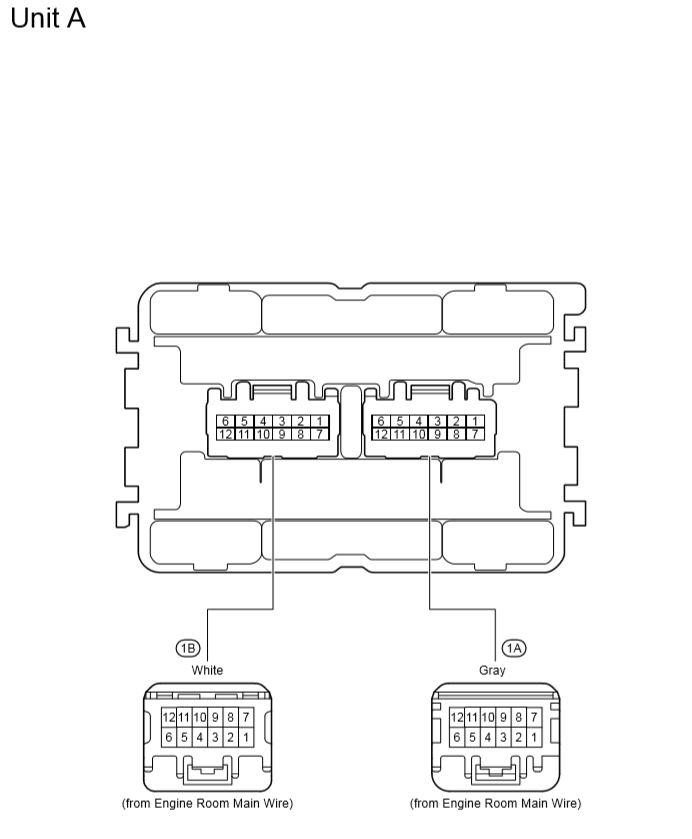

Fig 2: Engine Room R/B And J/B Assembly No. 1 (M20A-FKS) (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

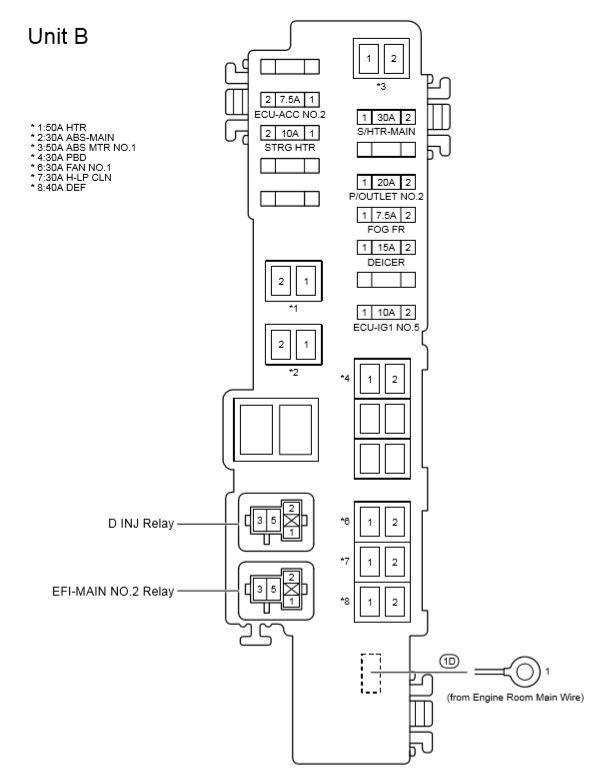

Fig 3: Engine Room R/B And J/B Assembly No. 1 (M20A-FKS) (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Engine Room R/B And J/B No. 1 (M20-FKS) Relay Identification

RELAY DESCRIPTION
D INJ Relay
EFI-MAIN NO. 2 Relay

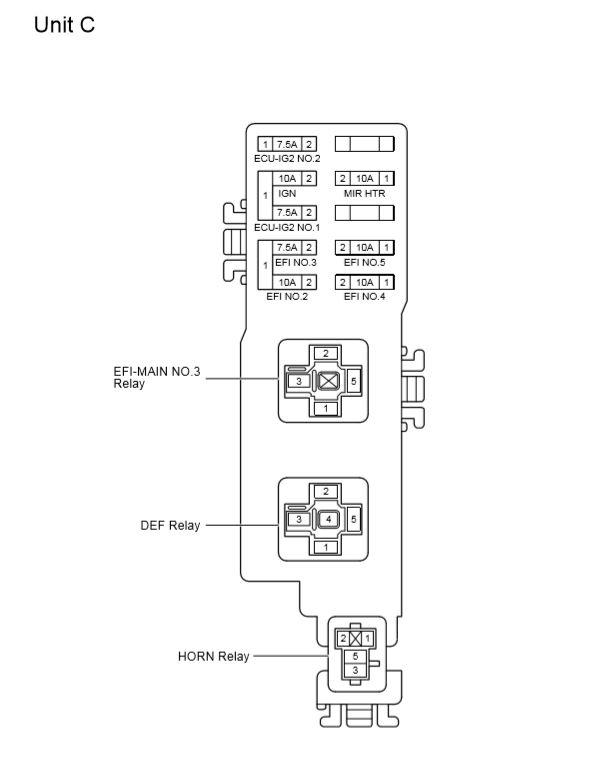

Fig 4: Engine Room R/B And J/B Assembly No. 1 (M20A-FKS) (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Engine Room R/B And J/B No. 1 (M20-FKS) Relay Identification

RELAY DESCRIPTION
EFI-MAIN NO. 3 Relay
DEF Relay
HORN Relay

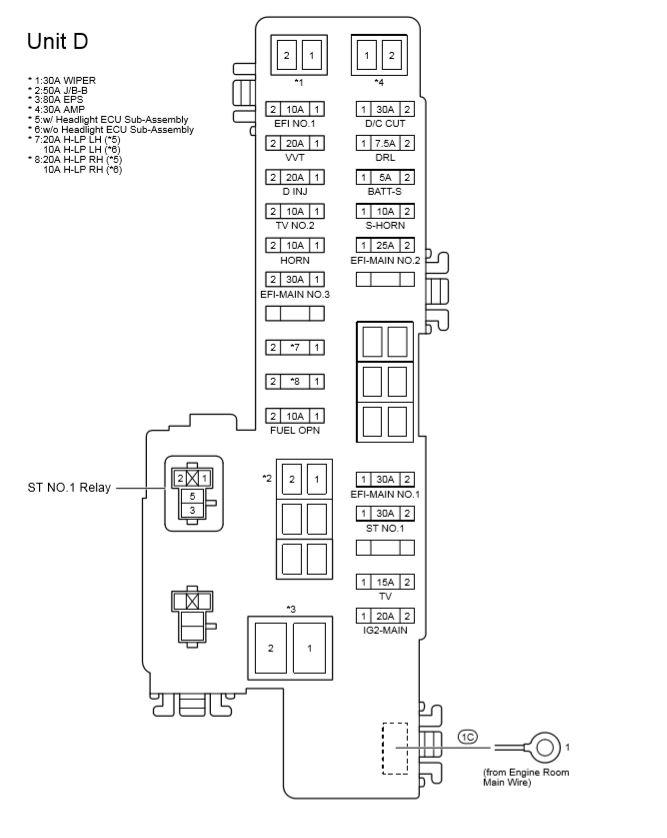

Fig 5: Engine Room R/B And J/B Assembly No. 1 (M20A-FKS) (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Engine Room R/B And J/B No. 1 (M20-FKS) Relay Identification

RELAY DESCRIPTION
ST NO. 1 Relay
