Instrument Panel Relay Block Assembly No. 4 Inner Circuit

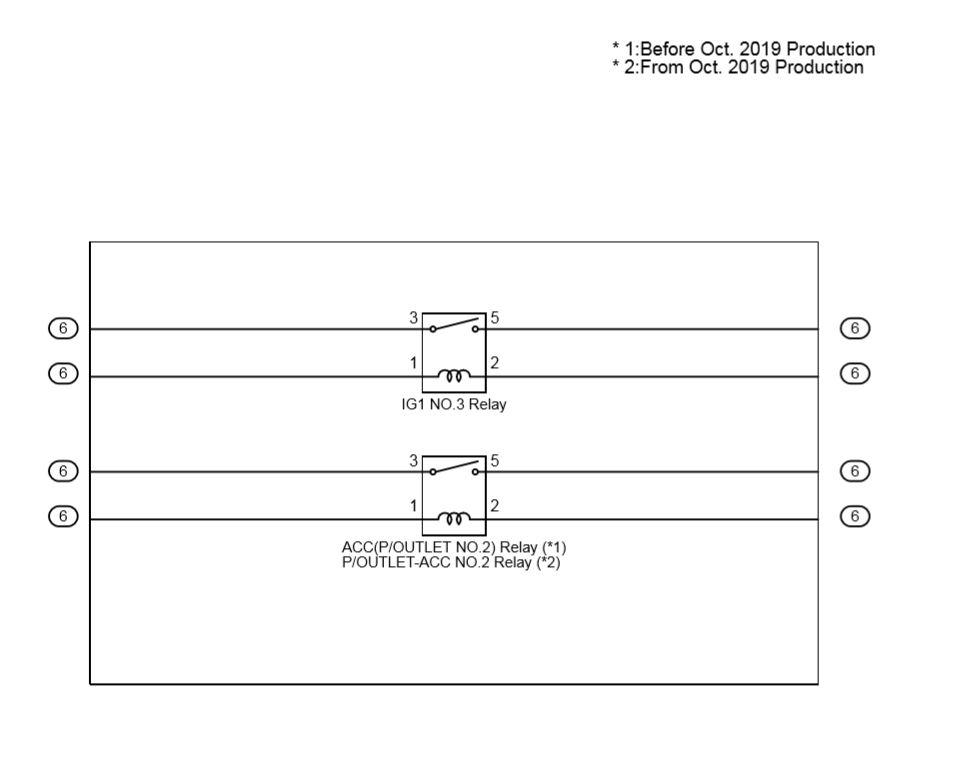

Fig 1: Instrument Panel R/B Assembly Circuit Diagram With Relays
G00586058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL R/B ASSEMBLY No. 4 RELAY IDENTIFICATION

RELAY DESCRIPTION
IG1 NO. 3 Relay
ACC(P/OULET NO. 2) Relay
P/OUTLET-ACC NO. 2 Relay
