Instrument Panel Junction Block Assembly - Instrument Panel Reinforcement: Notes

For additional information, refer to Figure.

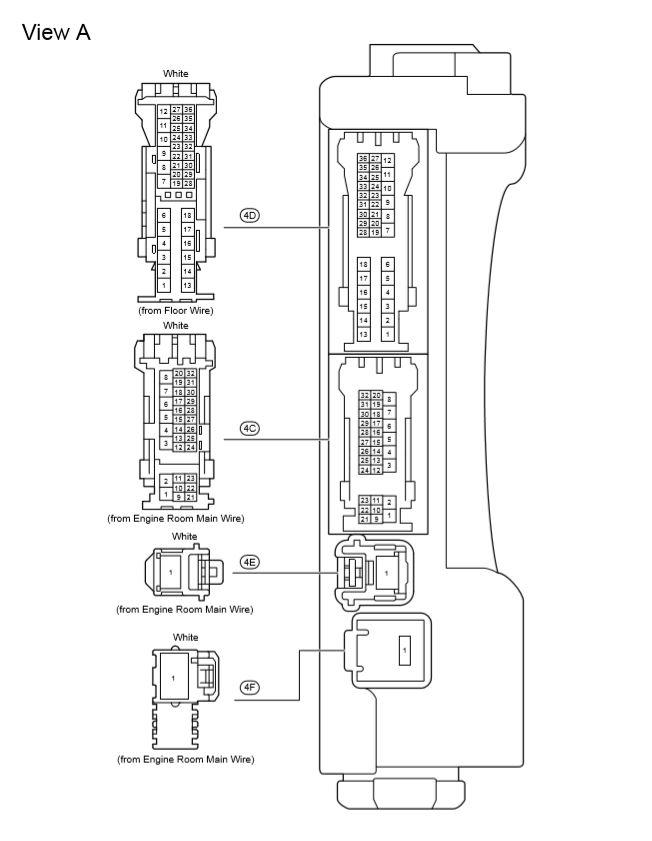

Fig 1: Instrument Panel J/B Assembly (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

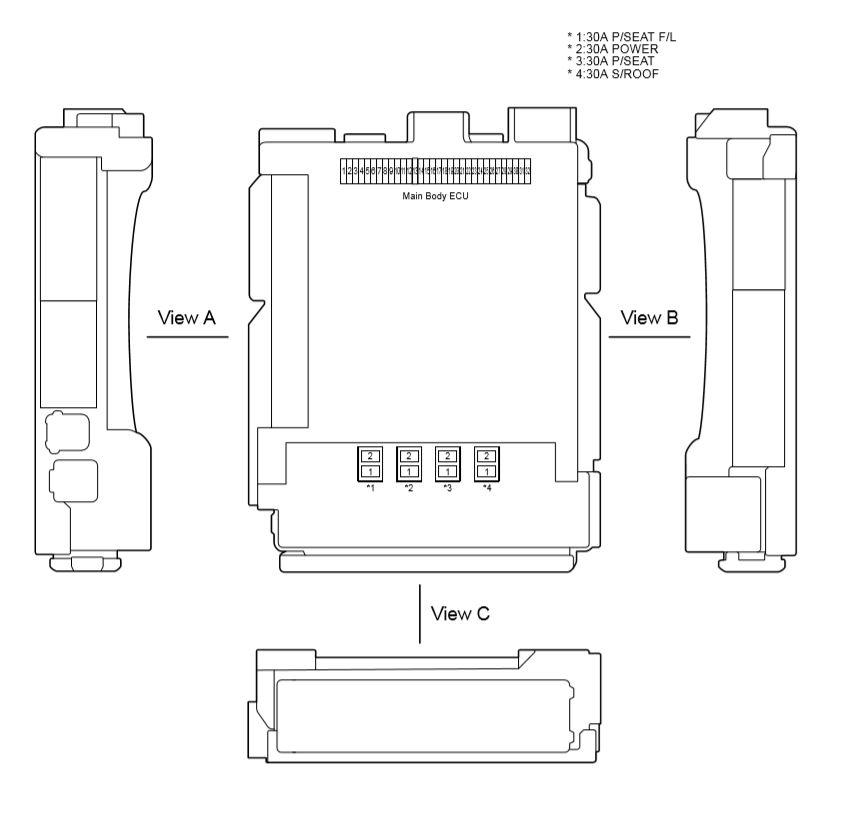

Fig 2: Instrument Panel J/B Assembly (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

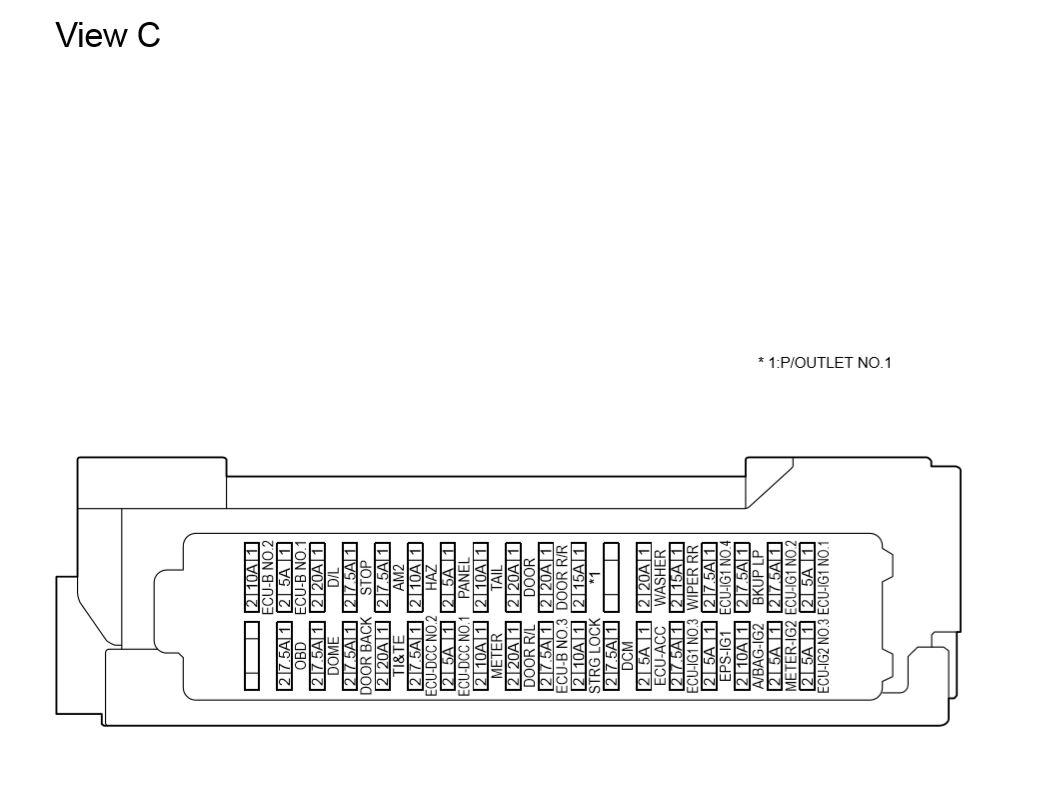

Fig 3: Instrument Panel J/B Assembly (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

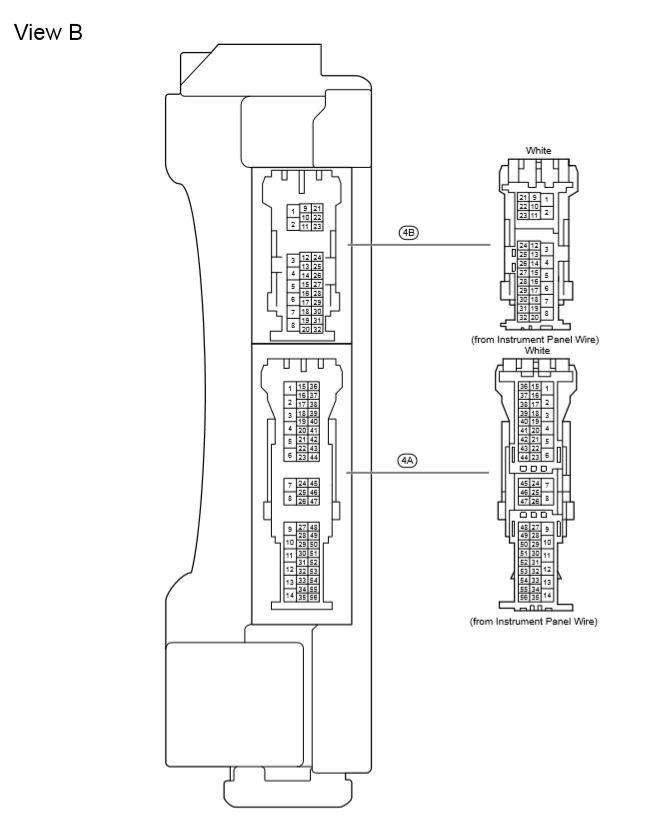

Fig 4: Instrument Panel J/B Assembly (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Instrument Panel Junction Block Assembly Fuse Identification Legend

FUSE
5A	ECU-ACC
5A	ECU-B NO. 1
5A	ECU-DCC NO. 1
5A	ECU-IG1 NO. 1
5A	ECU-IG2 NO. 3
5A	EPS-IG1
5A	METER-IG2
5A	PANEL
7.5A	AM2
7.5A	BKUP LP
7.5A	DCM
7.5A	DOME
7.5A	DOOR BACK
7.5A	ECU-B NO. 3
7.5A	ECU-DCC NO. 2
7.5A	ECU-IG1 NO. 2
7.5A	ECU-IG1 NO. 3
7.5A	ECU-IG NO. 4
7.5A	OBD
7.5A	STOP
10A	A/BAG-IG2
10A	ECU-B NO. 2
10A	HAZ
10A	METER
10A	STRG LOCK
10A	TAIL
15A	P/OUTLET NO. 1
15A	WIPER RR
20A	D/L
20A	DOOR R/L
20A	DOOR R/R
20A	TI&TE
20A	WASHER
20A	P/SEAT
30A	P/SEAT F/L
30A	POWER
30A	S/ROOF
