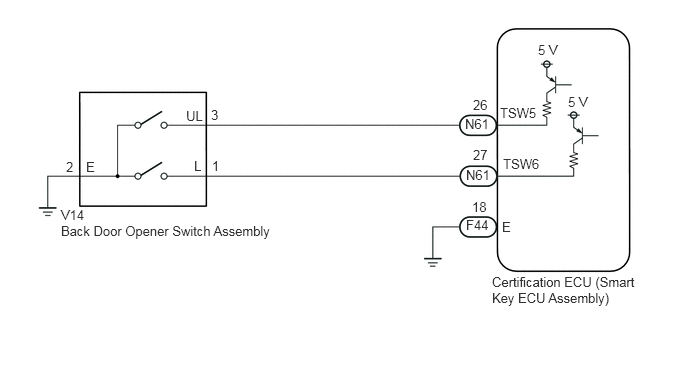

Back Door Entry Lock Function does not Operate [10/2018 - 07/2022]: Wiring Diagram

GTY791836

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
