System Diagram [10/2020 - ]

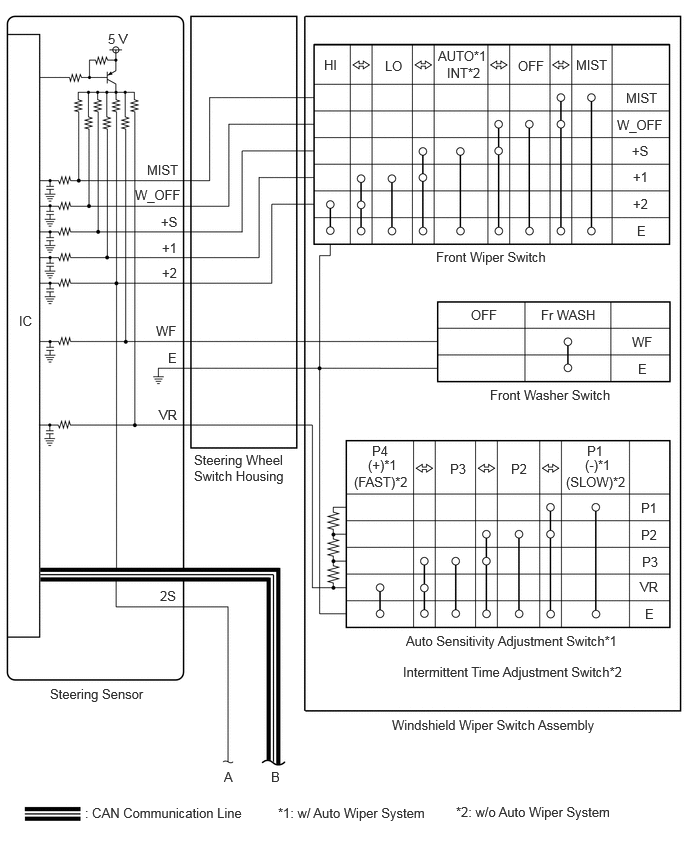

  1. FRONT WIPER AND WASHER SYSTEM
    GTY970323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY800679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REAR WIPER AND WASHER SYSTEM
    GTY775938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY795421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. HEADLIGHT CLEANER SYSTEM (w/ Headlight Cleaner System)
    GTY790476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. WASHER FLUID LEVEL WARNING SYSTEM
    GTY797408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
