LEXUS ENFORM System
>>
System Diagram [10/2019 - 07/2022]
>>
System Diagram [10/2019 - 07/2022]
System Diagram [10/2019 - 07/2022]

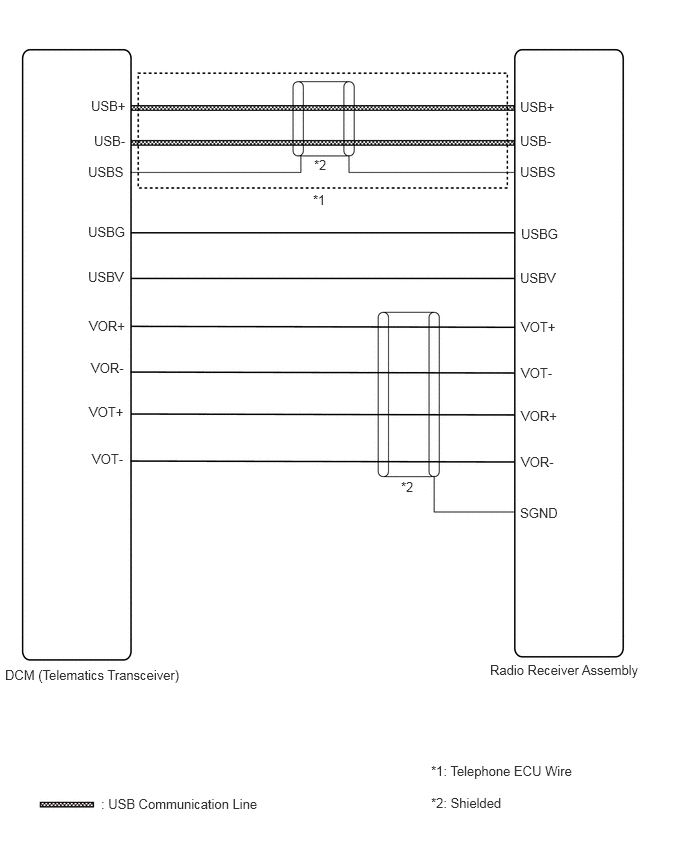

w/o Navigation System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

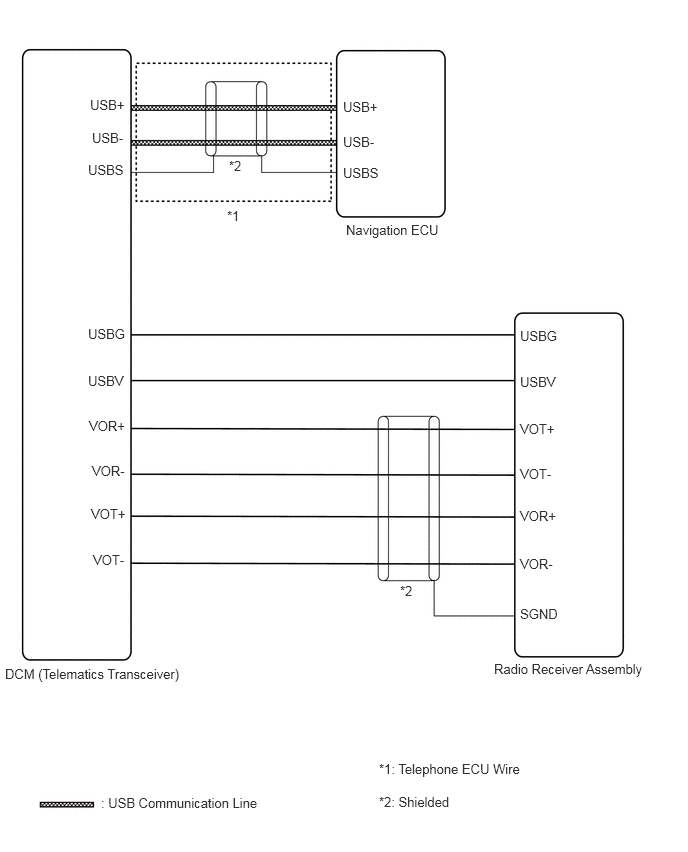

w/ Navigation System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
