DCM Data Signal Circuit between Navigation ECU and DCM [10/2018 - 10/2019]: Wiring Diagram

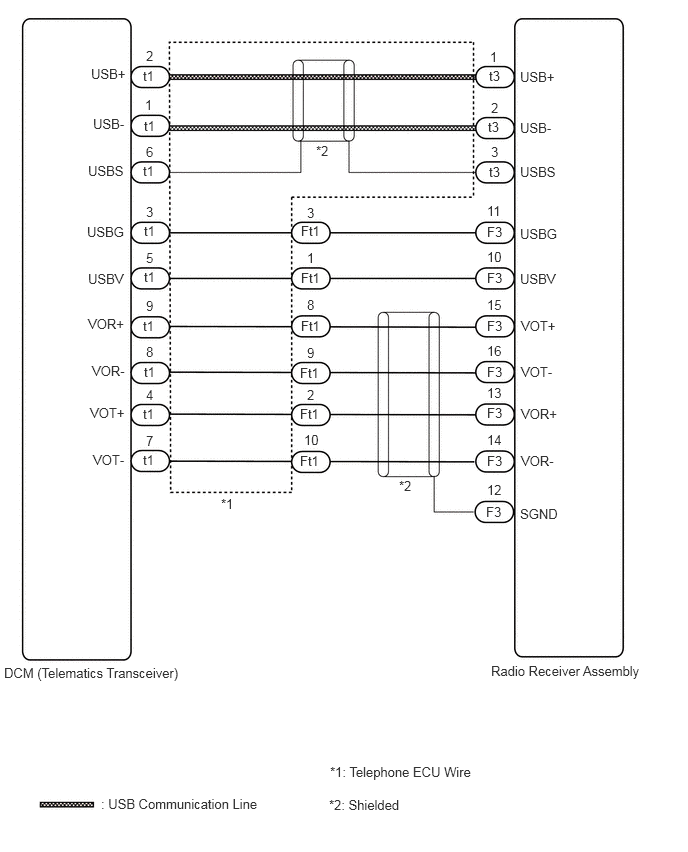

  1. w/o Navigation System
    GTY832466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

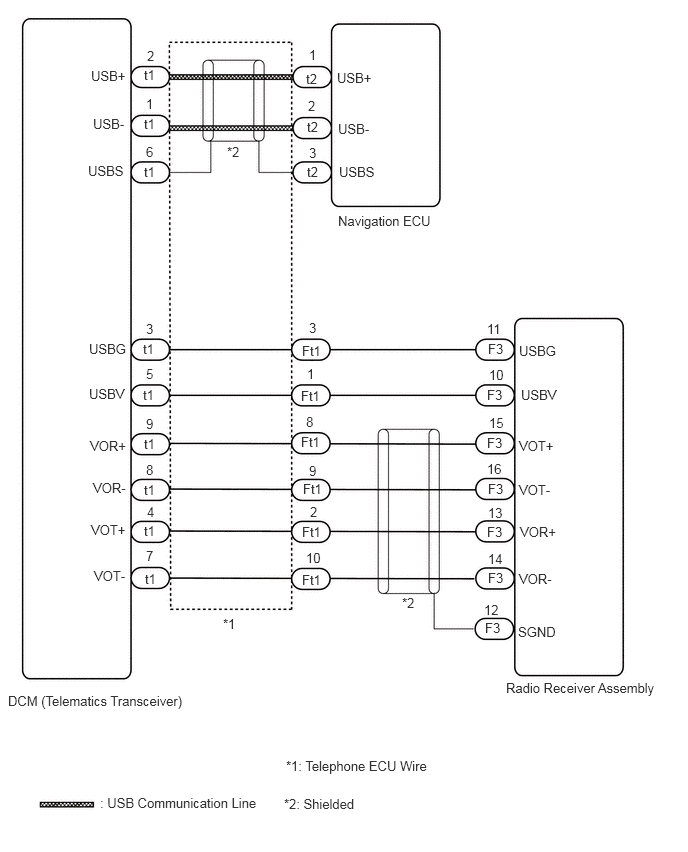

  2. w/ Navigation System
    GTY781843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
