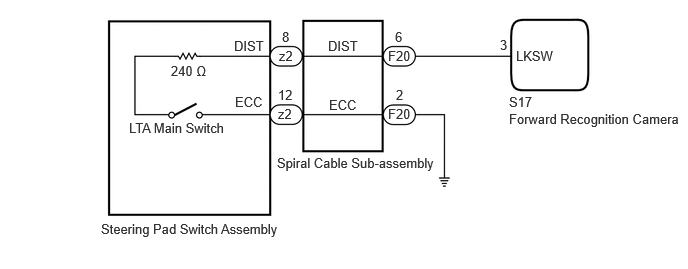

Steering Pad Switch Circuit [07/2022 - ]: Wiring Diagram

GTY1131193

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
