UX 200 Base
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Front Camera System (Diagnostics - Introduction)
>>
Front Camera System
>>
System Diagram [10/2018 - 07/2022]
>>
System Diagram [10/2018 - 07/2022]
System Diagram [10/2018 - 07/2022]

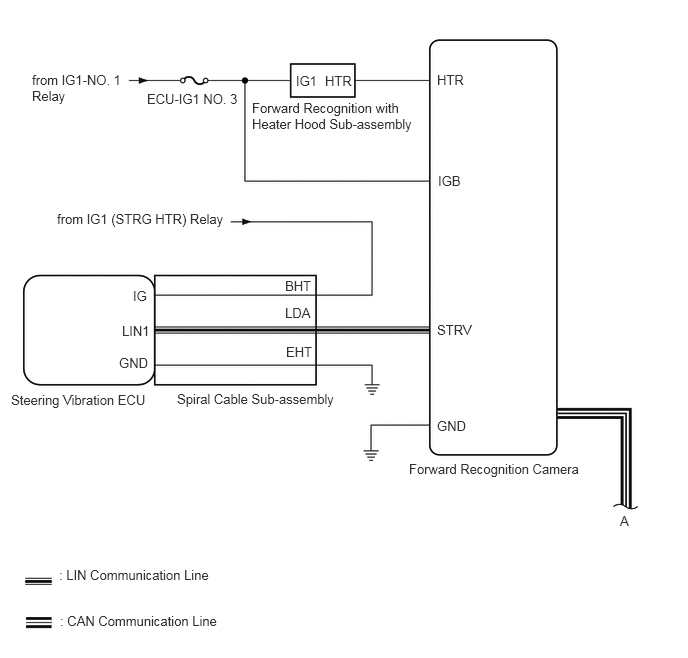

Fig 1: Front Camera System Diagram [10/2018 - 07/2022] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

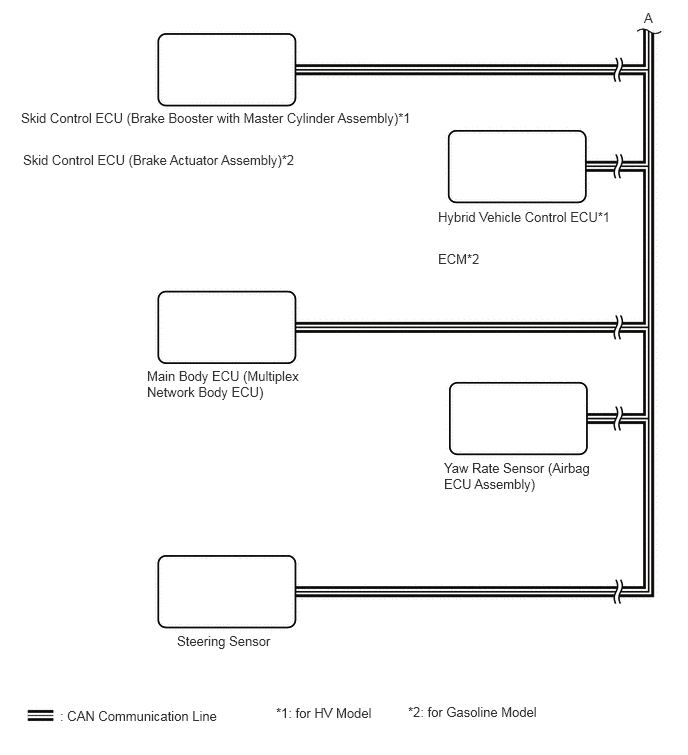

Fig 2: Front Camera System Diagram [10/2018 - 07/2022] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
