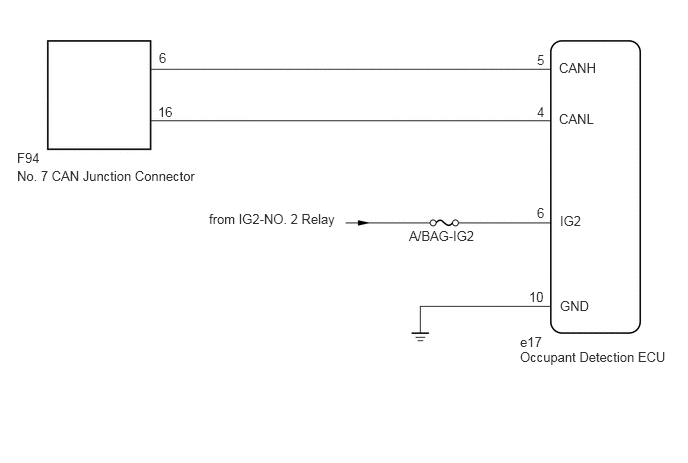

Restraints Occupant Classification System Module Communication Stop Mode [10/2018 - 07/2022]: Wiring Diagram

GTY790530

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
