Restraints Occupant Classification System Module Communication Stop Mode [10/2018 - 07/2022]: Procedure

1. Disconnect the cable from the negative (-) auxiliary battery terminal.
2. Disconnect the occupant detection ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

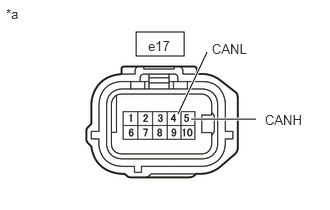

   *a	Front view of wire harness connector (to Occupant Detection ECU)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   e17-5 (CANH) - e17-4 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (OCCUPANT DETECTION ECU)

Result:

OK

See step  2

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

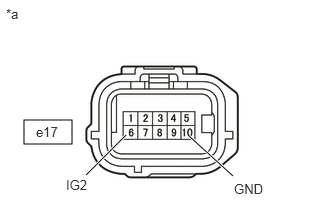

   *a	Front view of wire harness connector (to Occupant Detection ECU)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   e17-10 (GND) - Body ground	Cable disconnected from negative (-) auxiliary battery terminal	Below 1 Ω

2. Reconnect the cable to the negative (-) auxiliary battery terminal.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   e17-6 (IG2) - Body ground	Engine switch on (IG)	11 to 14 V

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE OCCUPANT DETECTION ECU. Refer to  REMOVAL [10/2018 - 07/2022]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
