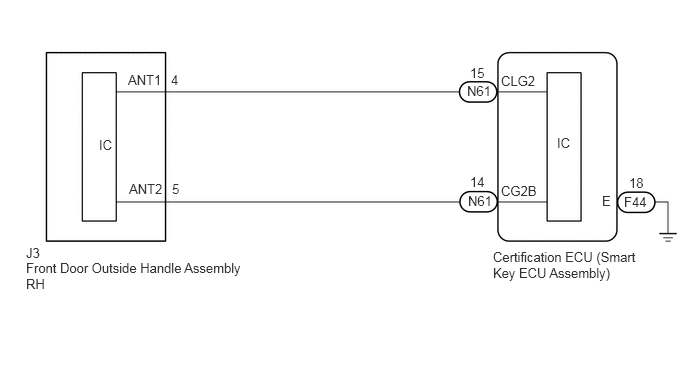

Front Passenger Side Door Entry Unlock Function does not Operate [10/2018 - 07/2022]: Wiring Diagram

GTY783902

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
