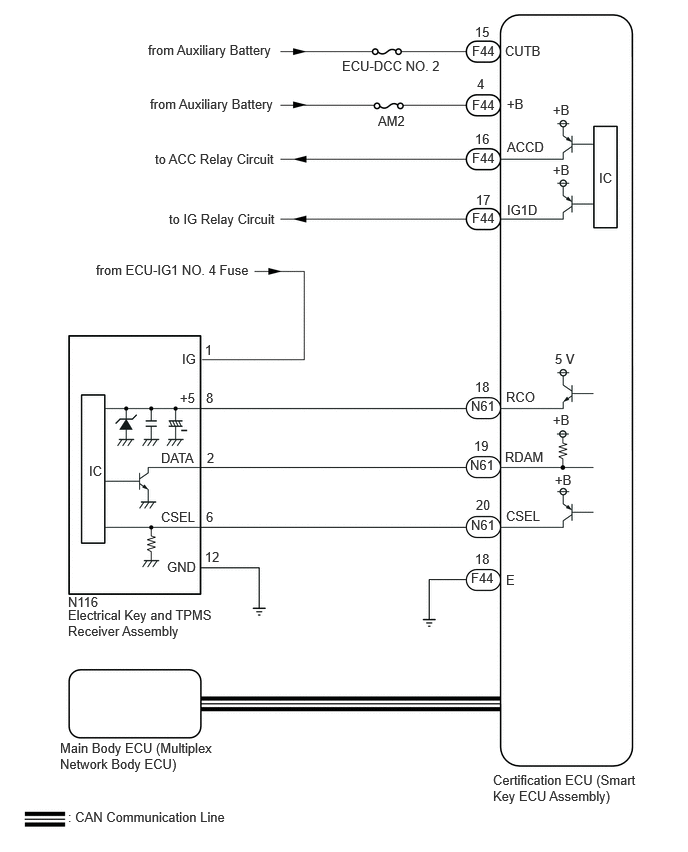

All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate [08/2021 - 07/2022]: Wiring Diagram

GTY1087782

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
