Back-up Light Circuit [08/2019 - ]: Wiring Diagram

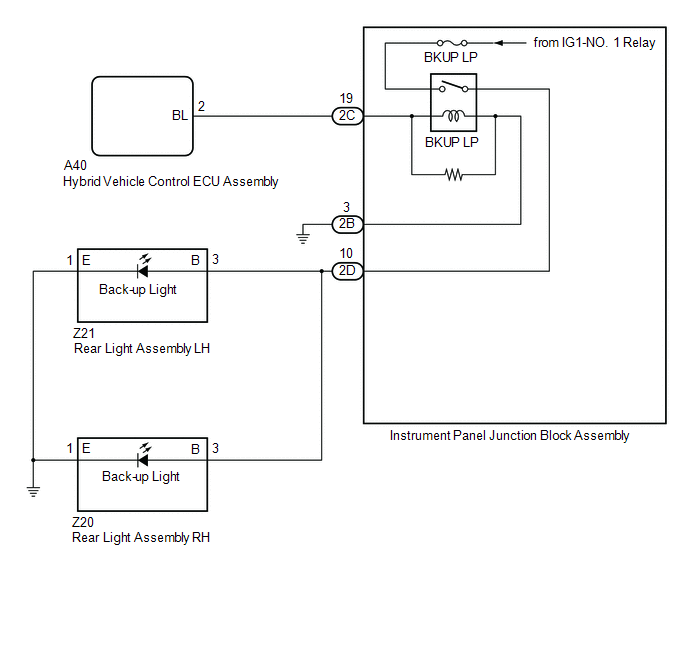

  1. for LED Type Back-up Light
    GTY960347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for Bulb Type Back-up Light
    GTY962430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
