System Diagram [12/2017 - 08/2019]

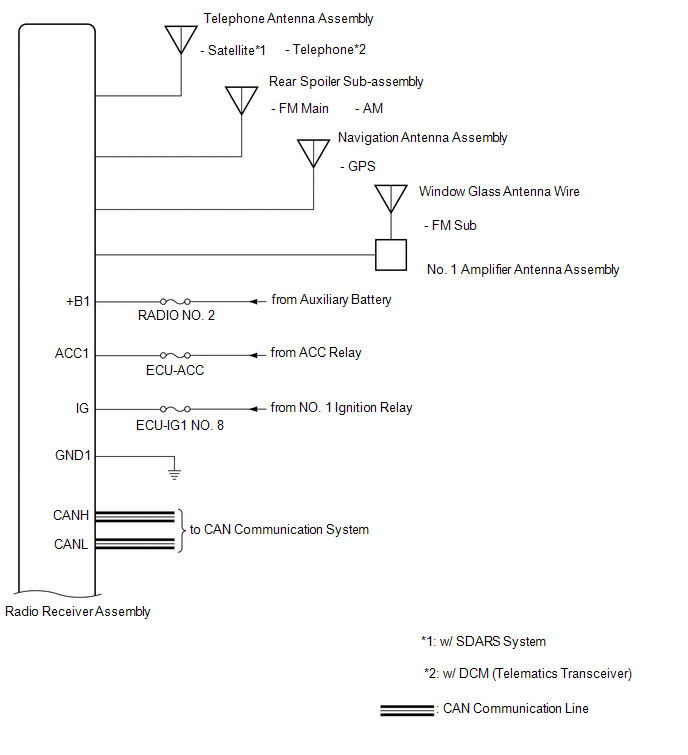

Fig 1: Audio And Visual System Diagram (1 Of 8) [12/2017 - 08/2019]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

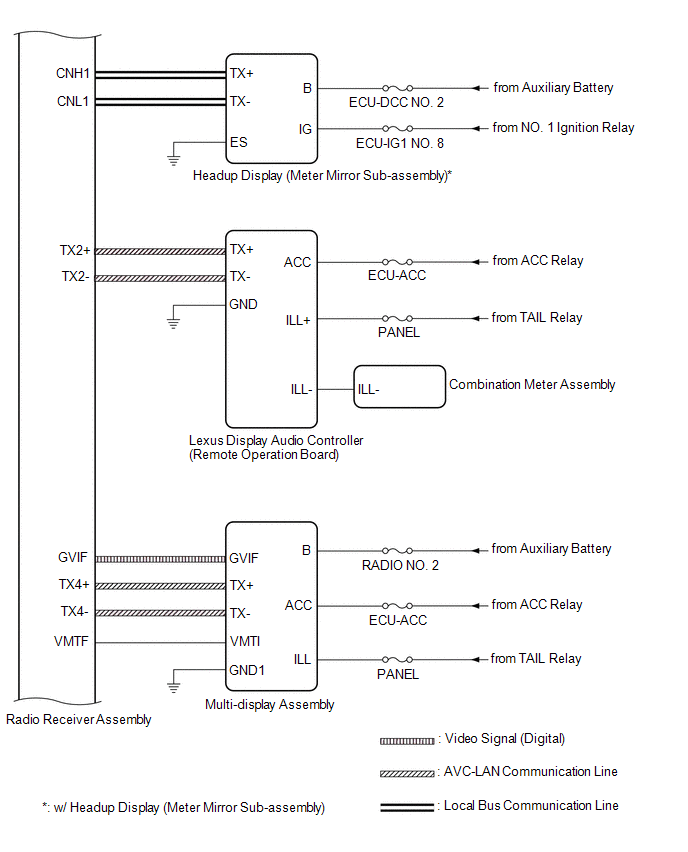

Fig 2: Audio And Visual System Diagram (2 Of 8) [12/2017 - 08/2019]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

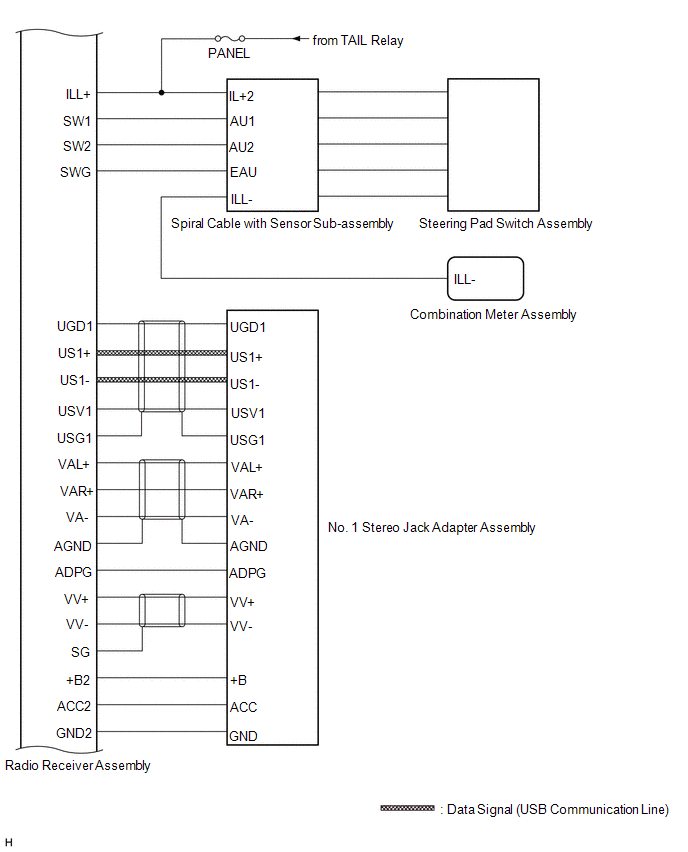

Fig 3: Audio And Visual System Diagram (3 Of 8) [12/2017 - 08/2019]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Audio And Visual System Diagram (4 Of 8) [12/2017 - 08/2019]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

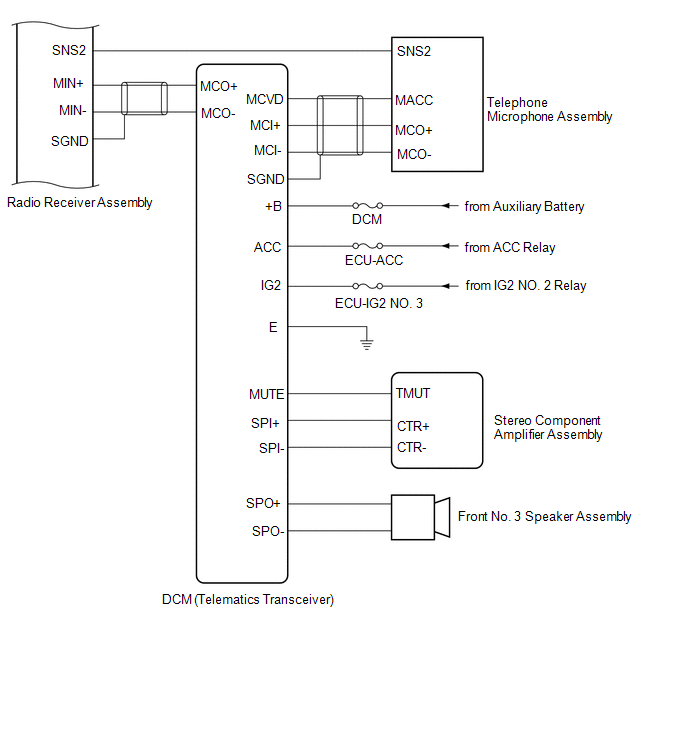

w/ DCM (Telematics Transceiver)

Fig 5: Audio And Visual System Diagram (w/ DCM (Telematics Transceiver)) (5 Of 8) [12/2017 - 08/2019]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o DCM (Telematics Transceiver)

Fig 6: Audio And Visual System Diagram (w/o DCM (Telematics Transceiver)) (6 Of 8) [12/2017 - 08/2019]

for 9 Speakers

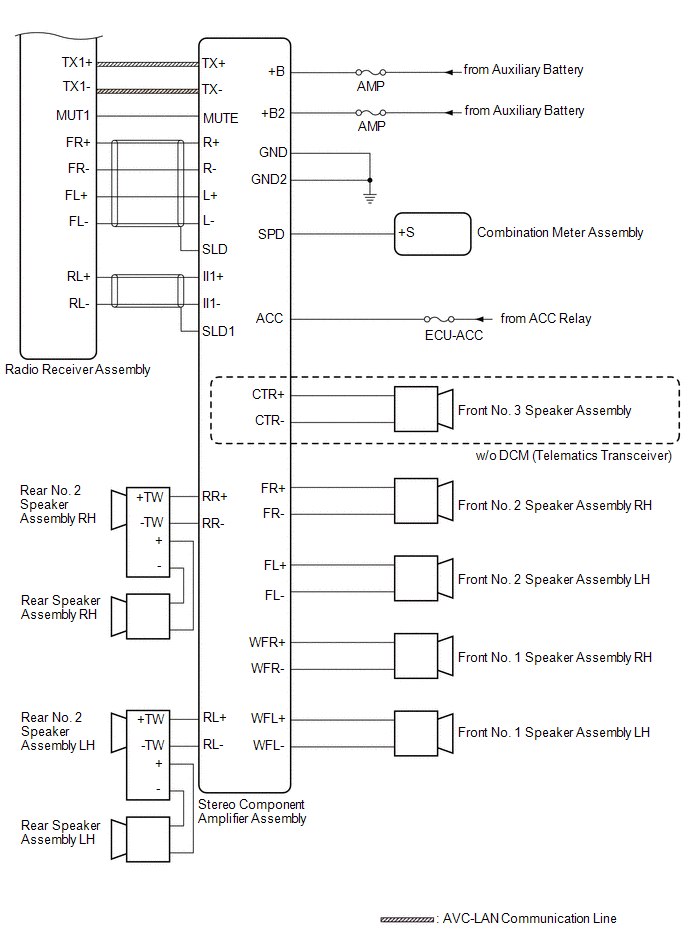

Fig 7: Audio And Visual System Diagram (for 9 Speakers) (7 Of 8) [12/2017 - 08/2019]

for 12 Speakers

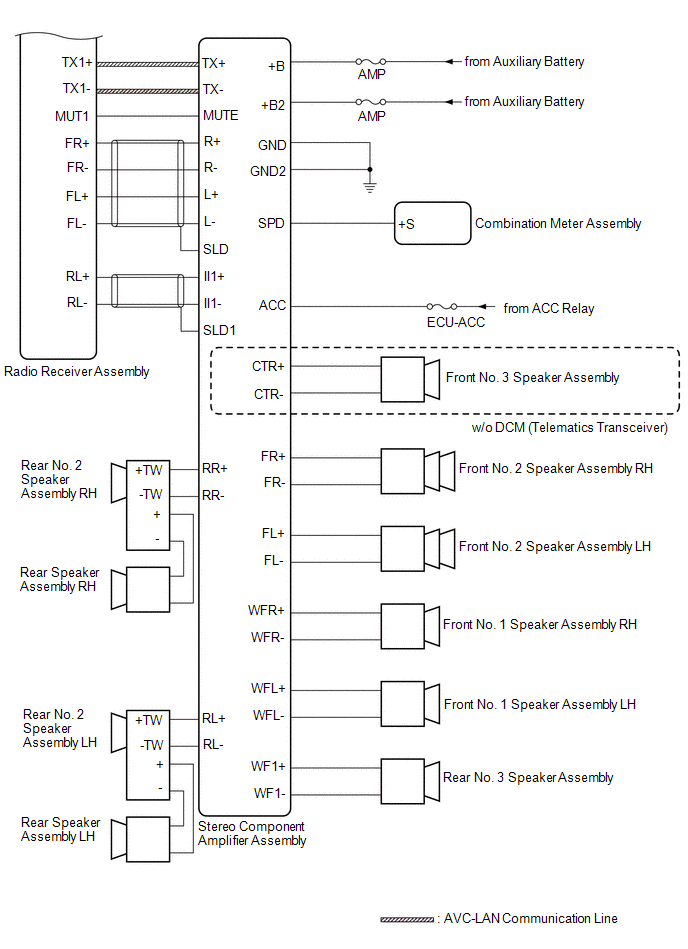

Fig 8: Audio And Visual System Diagram (for 12 Speakers) (8 Of 8) [12/2017 - 08/2019]
