System Diagram [08/2016 - 08/2019]

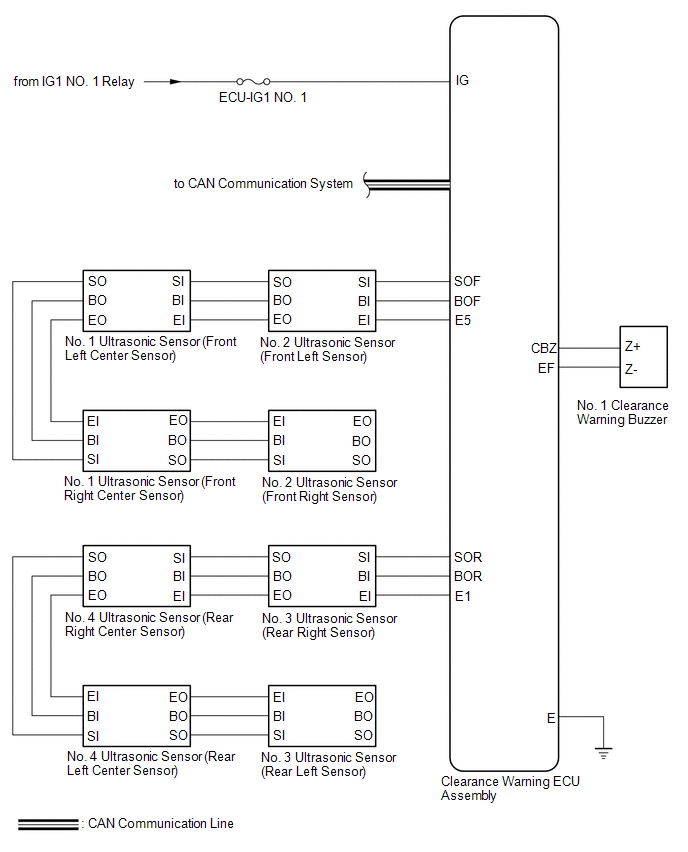

Fig 1: Intuitive Parking Assist System Diagram (W/ Intelligent Clearance Sonar System) (1 Of 3) [08/2016 - 08/2019]

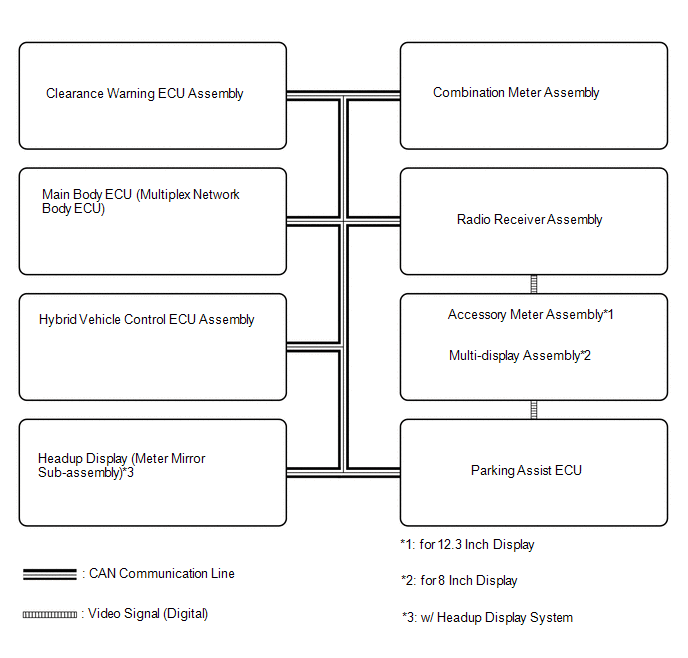

- w/ Panoramic View Monitor System Fig 2: Intuitive Parking Assist System Diagram (W/ Intelligent Clearance Sonar System) (W/ Panoramic View Monitor System) (2 Of 3) [08/2016 - 08/2019]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

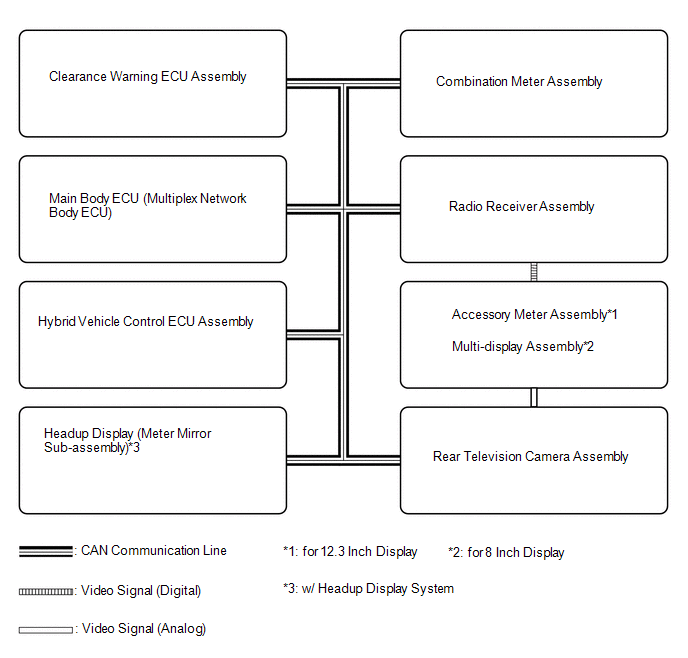

w/ Parking Assist Monitor System
Fig 3: Intuitive Parking Assist System Diagram (W/ Intelligent Clearance Sonar System) (W/ Parking Assist Monitor System) (3 Of 3) [08/2016 - 08/2019]Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLESender Receiver Signal Line Main Body ECU
(Multiplex Network Body ECU)Clearance Warning ECU Assembly Destination information signal CAN Communication Line Hybrid Vehicle Control ECU Assembly Clearance Warning ECU Assembly Shift position signal CAN Communication Line Combination Meter Assembly Clearance Warning ECU Assembly Vehicle speed signal CAN Communication Line Clearance Warning ECU Assembly Combination Meter Assembly - Sonar information signal
- Clearance sonar indicator illumination request signal
CAN Communication Line Clearance Warning ECU Assembly Radio Receiver Assembly Sonar information signal CAN Communication Line Radio Receiver Assembly - Accessory Meter Assembly*1
- Multi-display Assembly*2
Video signal Digital Parking Assist ECU*3 - Accessory Meter Assembly*1
- Multi-display Assembly*2
Video signal Digital Rear Television Camera Assembly*4 - Accessory Meter Assembly*1
- Multi-display Assembly*2
Video signal Analog Clearance Warning ECU Assembly*5 Headup Display (Meter Mirror Sub-assembly) Sonar information signal CAN Communication Line - *1: for 12.3 Inch Display
- *2: for 8 Inch Display
- *3: w/ Panoramic View Monitor System
- *4: w/ Parking Assist Monitor System
- *5: w/ Headup Display System
