Operation Check [03/2018 - 08/2019]

  1. Self-diagnosis System
    1. If the clearance warning ECU assembly detects that an ultrasonic sensor is malfunctioning, a malfunction indication is displayed on the combination meter assembly and accessory meter assembly*1 and multi-display assembly*2.
      1. *1: for 12.3 Inch Display
      2. *2: for 8 Inch Display
      Malfunctioning Item Detection Condition Warning Message
      (Multi-information Display)      		 Malfunction Indication
      (Combination Meter Assembly)      		 Malfunction Indication
      (Accessory Meter Assembly*1 or Multi-display Assembly*2)      		 Buzzer Sounding
      (No. 1 Clearance Warning Buzzer)      		 Suspected Area
      Frozen indication
      • The No. 1 ultrasonic sensor, No. 2 ultrasonic sensor, No. 3 ultrasonic sensor or No. 4 ultrasonic sensor is covered with foreign matter, such as mud or snow
      • The No. 1 ultrasonic sensor, No. 2 ultrasonic sensor, No. 3 ultrasonic sensor or No. 4 ultrasonic sensor is frozen
      		 Clean Parking Assist Sensor ◦ ◦ ◦
      Open circuit indication
      • There is an open circuit between the clearance warning ECU assembly and the No. 1 ultrasonic sensor, No. 2 ultrasonic sensor, No. 3 ultrasonic sensor or No. 4 ultrasonic sensor
      • The No. 1 ultrasonic sensor, No. 2 ultrasonic sensor, No. 3 ultrasonic sensor or No. 4 ultrasonic sensor is malfunctioning
      		 Parking Assist Malfunction ◦ ◦ ◦ Check for DTCs
      Refer to DTC CHECK / CLEAR [08/2016 - ]
      1. Malfunction Indication (Combination Meter Assembly)
        GTY685429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Open circuit indication *b Frozen indication

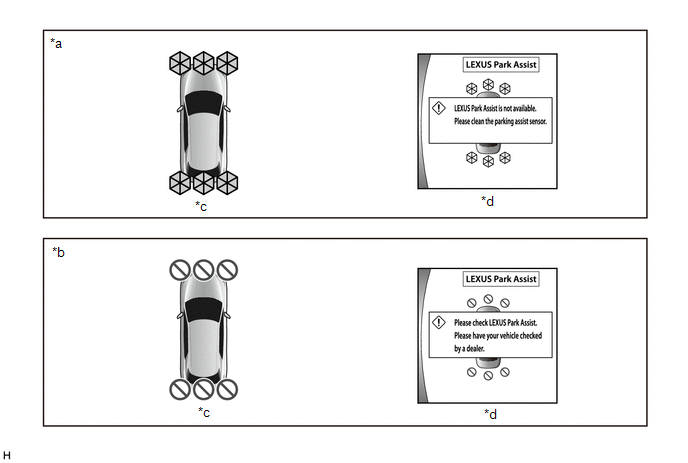

      2. Malfunction Indication (Accessory Meter Assembly (for 12.3 Inch Display))
        GTY665315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Frozen indication *b Open circuit indication
        *c When panoramic view screen is displayed *d When side screen is displayed

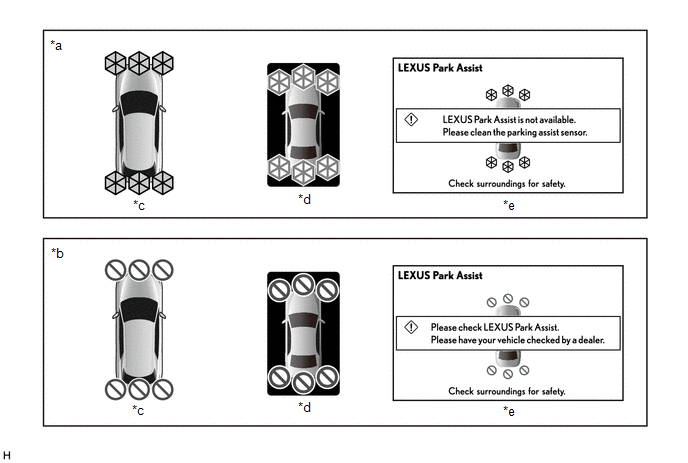

      3. Malfunction Indication (Multi-display Assembly (for 8 Inch Display))
        GTY634191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Frozen indication *b Open circuit indication
        *c When panoramic view screen is displayed *d When panoramic view monitor system (panoramic view screen not displayed) or parking assist monitor system operates
        *e When full screen is displayed - -
      4. Buzzer Sounding (No. 1 Clearance Warning Buzzer)
        GTY517005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Buzzer sounding is stopped after approximately 7.5 seconds elapsed.

  2. DETECTION RANGE MEASUREMENT AND DISPLAY INSPECTION
    NOTE:

    Perform the following measurement and inspection with the shift lever in a position other than P. Be sure to apply the parking brake and depress the brake pedal firmly to prevent the vehicle from moving.

    1. Turn the power switch on (IG).
    2. Turn the intuitive parking assist system on.
    3. Detection range measurement:
      1. Move the shift lever according to the table below.
        Measurement Area Shift Lever Position
        Front Corner In any position other than P
        Front Center In any position other than P or R
        Rear Corner R
        Rear Center
      2. Move a 60 mm (2.4 in.) diameter pole near each sensor to measure its detection range. When measuring the longest-range detection of the front center sonar and the rear center sonar, use a wall or equivalent.
        NOTE:

        These detection ranges are applicable when positioning the 60 mm (2.4 in.) diameter pole parallel or perpendicular to the ground. The detection range varies depending on the measuring method and type of obstacle (such as walls).

        HINT:

        Have an assistant move the pole.

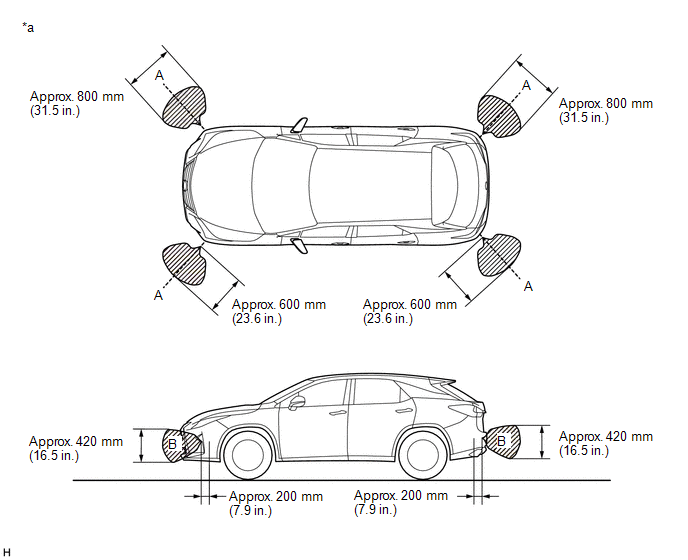

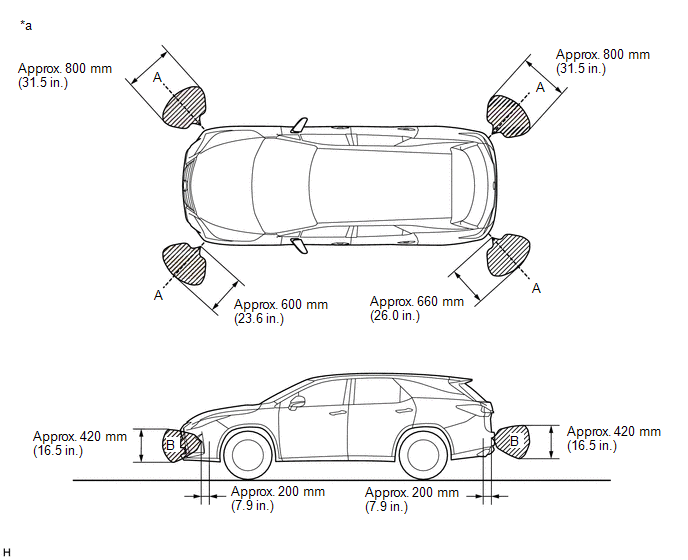

        Corner Sonar Detection Range

        GTY793174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a w/o Rear No. 2 Seat - -
        GTY803810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a w/ Rear No. 2 Seat - -
        NOTE:

        The No. 1 ultrasonic sensor side view detection range (hatched area labeled (B)) represents the cross section of the top view detection range (A). The hatched area (B) does not represent the entire side view detection range.

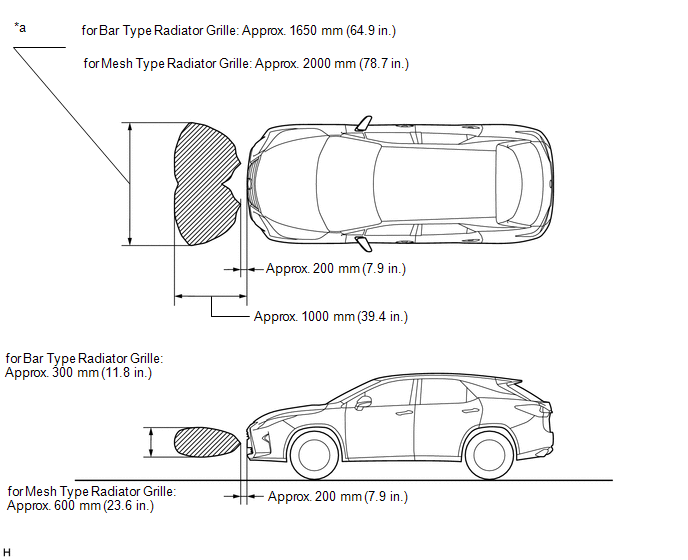

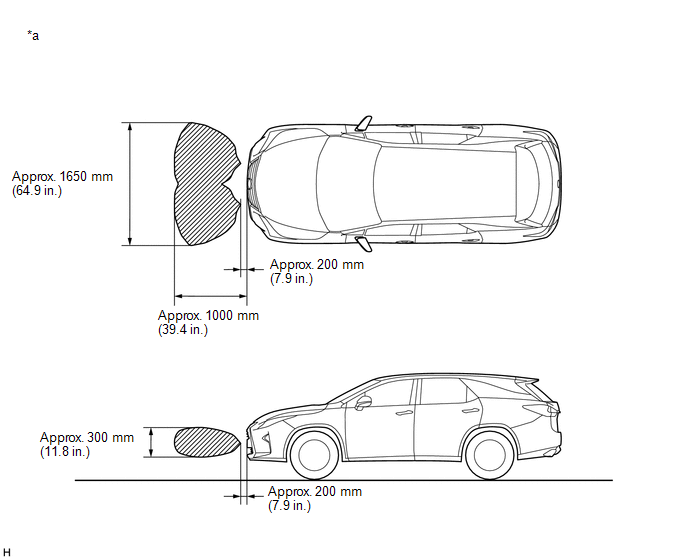

        Front Center Sonar Detection Range

        GTY813299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a w/o Rear No. 2 Seat - -
        GTY801949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a w/ Rear No. 2 Seat - -

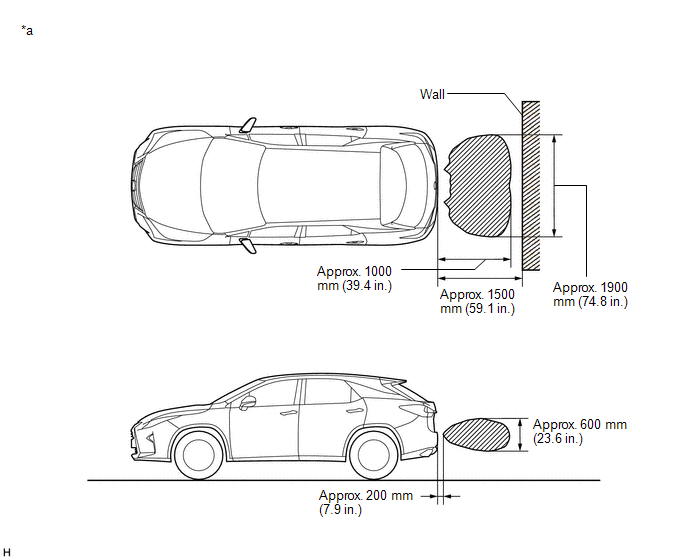

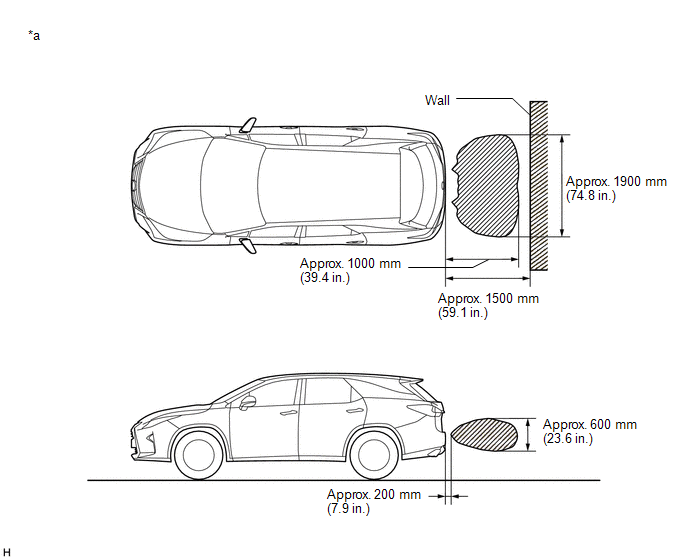

        Rear Center Sonar Detection Range

        GTY803344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a w/o Rear No. 2 Seat - -
        GTY819037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a w/ Rear No. 2 Seat - -

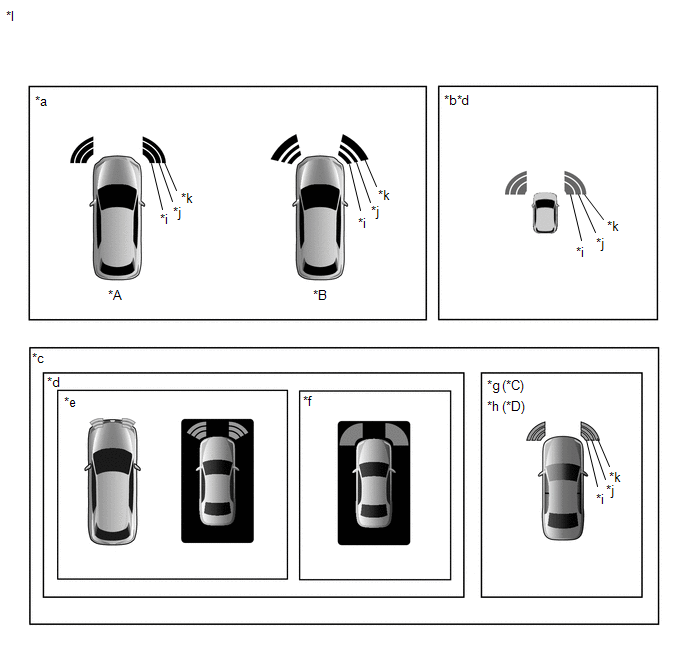

    4. Front corner sonar display and buzzer operation check
      1. When the No. 2 ultrasonic sensors (front corner sonar) have detected an obstacle, check the displays and check that the buzzer sounds.
        OPERATION CONDITION

        Power Switch Intuitive Parking Assist System Shift Lever Position Vehicle Speed
        On (IG) On In any position other than P Less than approximately 10 km/h (6 mph) if speed is increasing
        GTY670134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for Optitron Meter Type *B for TFT Meter Type
        *C for 12.3 Inch Display *D for 8 Inch Display
        *a Multi-information Display *b Headup Display (w/ Headup Display System)
        *c Multi-display *d Cooperated Display
        *e w/ Panoramic View Monitor System *f w/ Parking Assist Monitor System
        *g Side Screen Display *h Full Screen Display
        *i Close-range Detection *j Medium-range Detection
        *k Long-range Detection *l Example (Front Corner Sonar)
        GTY586361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard

        MULTI-INFORMATION DISPLAY AND BUZZER

        Detection Range During Judgment Obstacle
        Close-range detection
        Within approx. 350 +/- 40 mm (13.8 +/- 1.57 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (blinking)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 350 +/- 40 to 450 +/- 50 mm (13.8 +/- 1.57 to 17.7 +/- 1.97 in.)        		 Buzzer: Sounds intermittently (ON: 0.1 sec. / OFF: 0.1 sec.)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 450 +/- 50 to 600 +/- 60 mm (17.7 +/- 1.97 to 23.6 +/- 2.36 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.2 sec.)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole
        HEADUP DISPLAY AND BUZZER (COOPERATED DISPLAY (W/ HEADUP DISPLAY SYSTEM))

        Detection Range During Judgment Obstacle
        Close-range detection
        Within approx. 350 +/- 40 mm (13.8 +/- 1.57 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (blinking)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 350 +/- 40 to 450 +/- 50 mm (13.8 +/- 1.57 to 17.7 +/- 1.97 in.)        		 Buzzer: Sounds intermittently (ON: 0.1 sec. / OFF: 0.1 sec.)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 450 +/- 50 to 600 +/- 60 mm (17.7 +/- 1.97 to 23.6 +/- 2.36 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.2 sec.)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole
        MULTI-DISPLAY AND BUZZER (COOPERATED DISPLAY)

        Detection Range During Judgment Obstacle
        Close-range detection
        Within approx. 350 +/- 40 mm (13.8 +/- 1.57 in.)        		 Buzzer: Sounds continuously
        Color of bars displayed: Red (illuminated)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 350 +/- 40 to 450 +/- 50 mm (13.8 +/- 1.57 to 17.7 +/- 1.97 in.)        		 Buzzer: Sounds intermittently (ON: 0.1 sec. / OFF: 0.1 sec.)
        Color of bars displayed: Yellow (blinking)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 450 +/- 50 to 600 +/- 60 mm (17.7 +/- 1.97 to 23.6 +/- 2.36 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.2 sec.)
        Color of bars displayed: Yellow (blinking)        		 60 mm (2.4 in.) diameter pole
        MULTI-DISPLAY AND BUZZER (SIDE SCREEN DISPLAY*1 OR FULL SCREEN DISPLAY*2)

        Detection Range During Judgment Obstacle
        Close-range detection
        Within approx. 350 +/- 40 mm (13.8 +/- 1.57 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 350 +/- 40 to 450 +/- 50 mm (13.8 +/- 1.57 to 17.7 +/- 1.97 in.)        		 Buzzer: Sounds intermittently (ON: 0.1 sec. / OFF: 0.1 sec.)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 450 +/- 50 to 600 +/- 60 mm (17.7 +/- 1.97 to 23.6 +/- 2.36 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.2 sec.)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole

        *1: for 12.3 Inch Display*2: for 8 Inch Display

        HINT:

        Ultrasonic waves are used to measure the detection range; however, the detection range may vary depending on the ambient temperature.

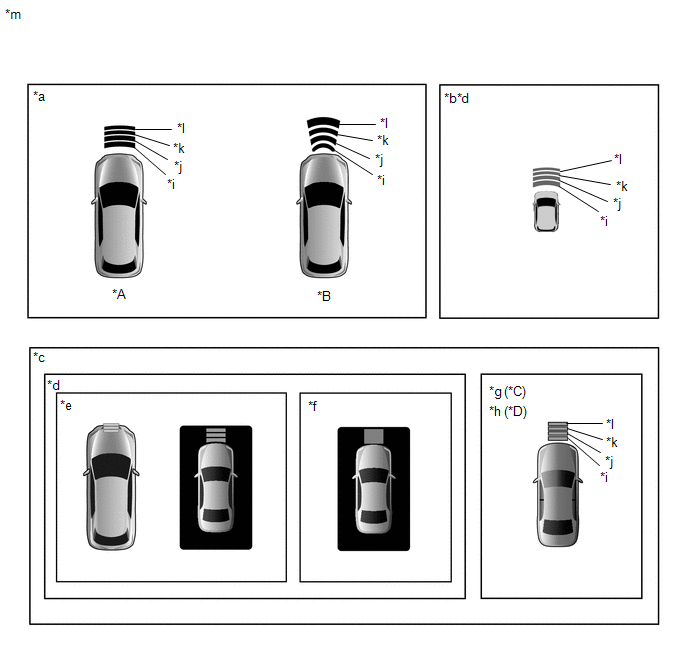

    5. Front center sonar display and buzzer operation check
      1. When the No. 1 ultrasonic sensors (front center sonar) have detected an obstacle, check the display and check that the buzzer sounds.
        OPERATION CONDITION

        Power Switch Intuitive Parking Assist System Shift Lever Position Vehicle Speed
        On (IG) On In any position other than P or R Less than approximately 10 km/h (6 mph) if speed is increasing
        GTY622502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for Optitron Meter Type *B for TFT Meter Type
        *C for 12.3 Inch Display *D for 8 Inch Display
        *a Multi-information Display *b Headup Display (w/ Headup Display System)
        *c Multi-display *d Cooperated Display
        *e w/ Panoramic View Monitor System *f w/ Parking Assist Monitor System
        *g Side Screen Display *h Full Screen Display
        *i Close-range Detection *j Medium-range Detection
        *k Long-range Detection *l Longest-range Detection
        *m Example (Front Center Sonar) - -
        GTY589012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard

        MULTI-INFORMATION DISPLAY AND BUZZER

        Detection Range During Detection Obstacle
        Close-range detection
        Within approx. 350 +/- 40 mm (13.8 +/- 1.57 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (blinking)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 350 +/- 40 to 450 +/- 50 mm (13.8 +/- 1.57 to 17.7 +/- 1.97 in.)        		 Buzzer: Sounds intermittently (ON: 0.1 sec. / OFF: 0.1 sec.)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 450 +/- 50 to 600 +/- 60 mm (17.7 +/- 1.97 to 23.6 +/- 2.36 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.2 sec.)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Longest-range detection
        From approx. 600 +/- 60 to 1000 +/- 100 mm (23.6 +/- 2.36 to 39.4 +/- 3.94 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.5 sec.)
        Number of bars displayed: 4 (illuminated)        		 Wall
        HEADUP DISPLAY AND BUZZER (COOPERATED DISPLAY (W/ HEADUP DISPLAY SYSTEM))

        Detection Range During Detection Obstacle
        Close-range detection
        Within approx. 350 +/- 40 mm (13.8 +/- 1.57 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (blinking)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 350 +/- 40 to 450 +/- 50 mm (13.8 +/- 1.57 to 17.7 +/- 1.97 in.)        		 Buzzer: Sounds intermittently (ON: 0.1 sec. / OFF: 0.1 sec.)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 450 +/- 50 to 600 +/- 60 mm (17.7 +/- 1.97 to 23.6 +/- 2.36 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.2 sec.)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Longest-range detection
        From approx. 600 +/- 60 to 1000 +/- 100 mm (23.6 +/- 2.36 to 39.4 +/- 3.94 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.5 sec.)
        Number of bars displayed: 4 (illuminated)        		 Wall
        MULTI-DISPLAY AND BUZZER (COOPERATED DISPLAY)

        Detection Range During Detection Obstacle
        Close-range detection
        Within approx. 350 +/- 40 mm (13.8 +/- 1.57 in.)        		 Buzzer: Sounds continuously
        Color of bars displayed: Red (illuminated)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 350 +/- 40 to 450 +/- 50 mm (13.8 +/- 1.57 to 17.7 +/- 1.97 in.)        		 Buzzer: Sounds intermittently (ON: 0.1 sec. / OFF: 0.1 sec.)
        Color of bars displayed: Yellow (blinking)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 450 +/- 50 to 600 +/- 60 mm (17.7 +/- 1.97 to 23.6 +/- 2.36 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.2 sec.)
        Color of bars displayed: Yellow (blinking)        		 60 mm (2.4 in.) diameter pole
        Longest-range detection
        From approx. 600 +/- 60 to 1000 +/- 100 mm (23.6 +/- 2.36 to 39.4 +/- 3.94 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.5 sec.)
        Color of bars displayed: Yellow (blinking)        		 Wall
        MULTI-DISPLAY AND BUZZER (SIDE SCREEN DISPLAY*1 OR FULL SCREEN DISPLAY*2)

        Detection Range During Detection Obstacle
        Close-range detection
        Within approx. 350 +/- 40 mm (13.8 +/- 1.57 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 350 +/- 40 to 450 +/- 50 mm (13.8 +/- 1.57 to 17.7 +/- 1.97 in.)        		 Buzzer: Sounds intermittently (ON: 0.1 sec. / OFF: 0.1 sec.)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 450 +/- 50 to 600 +/- 60 mm (17.7 +/- 1.97 to 23.6 +/- 2.36 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.2 sec.)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Longest-range detection
        From approx. 600 +/- 60 to 1000 +/- 100 mm (23.6 +/- 2.36 to 39.4 +/- 3.94 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.5 sec.)
        Number of bars displayed: 4 (illuminated)        		 Wall

        *1: for 12.3 Inch Display*2: for 8 Inch Display

        HINT:

        Ultrasonic waves are used to measure the detection range; however, the detection range may vary depending on the ambient temperature.

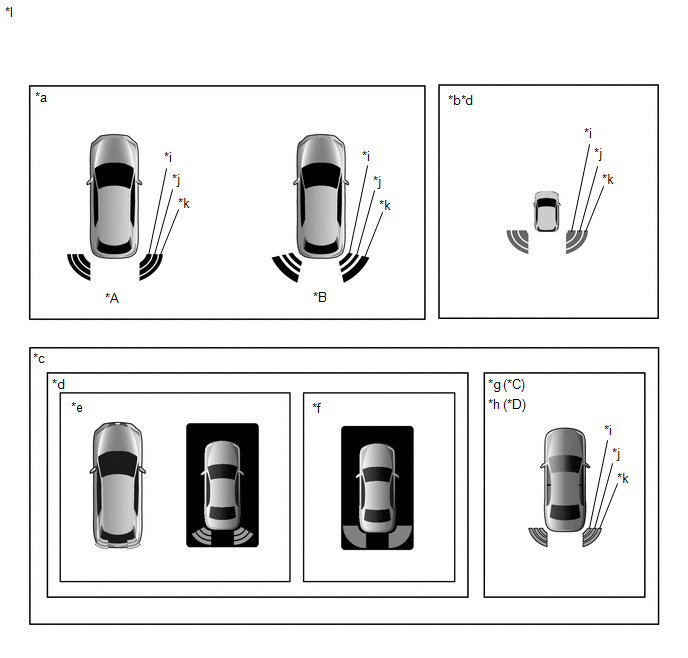

    6. Rear corner sonar display and buzzer operation check
      1. When the No. 3 ultrasonic sensors (rear corner sonar) have detected an obstacle, check the display and check that the buzzer sounds.
        OPERATION CONDITION

        Power Switch Intuitive Parking Assist System Shift Lever Position Vehicle Speed
        On (IG) On R Less than approximately 10 km/h (6 mph) if speed is increasing
        GTY659256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for Optitron Meter Type *B for TFT Meter Type
        *C for 12.3 Inch Display *D for 8 Inch Display
        *a Multi-information Display *b Headup Display (w/ Headup Display System)
        *c Multi-display *d Cooperated Display
        *e w/ Panoramic View Monitor System *f w/ Parking Assist Monitor System
        *g Side Screen Display *h Full Screen Display
        *i Close-range Detection *j Medium-range Detection
        *k Long-range Detection *l Example (Rear Corner Sonar)
        GTY586361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard

        MULTI-INFORMATION DISPLAY AND BUZZER

        Detection Range During Judgment Obstacle
        Close-range detection
        Within approx. 350 +/- 40 mm (13.8 +/- 1.57 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (blinking)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 350 +/- 40 to 450 +/- 50 mm (13.8 +/- 1.57 to 17.7 +/- 1.97 in.)        		 Buzzer: Sounds intermittently (ON: 0.1 sec. / OFF: 0.1 sec.)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 450 +/- 50 to 600 +/- 60 mm (17.7 +/- 1.97 to 23.6 +/- 2.36 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.2 sec.)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole
        HEADUP DISPLAY AND BUZZER (COOPERATED DISPLAY (W/ HEADUP DISPLAY SYSTEM))

        Detection Range During Judgment Obstacle
        Close-range detection
        Within approx. 350 +/- 40 mm (13.8 +/- 1.57 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (blinking)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 350 +/- 40 to 450 +/- 50 mm (13.8 +/- 1.57 to 17.7 +/- 1.97 in.)        		 Buzzer: Sounds intermittently (ON: 0.1 sec. / OFF: 0.1 sec.)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 450 +/- 50 to 600 +/- 60 mm (17.7 +/- 1.97 to 23.6 +/- 2.36 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.2 sec.)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole
        MULTI-DISPLAY AND BUZZER (COOPERATED DISPLAY)

        Detection Range During Judgment Obstacle
        Close-range detection
        Within approx. 350 +/- 40 mm (13.8 +/- 1.57 in.)        		 Buzzer: Sounds continuously
        Color of bars displayed: Red (illuminated)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 350 +/- 40 to 450 +/- 50 mm (13.8 +/- 1.57 to 17.7 +/- 1.97 in.)        		 Buzzer: Sounds intermittently (ON: 0.1 sec. / OFF: 0.1 sec.)
        Color of bars displayed: Yellow (blinking)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 450 +/- 50 to 600 +/- 60 mm (17.7 +/- 1.97 to 23.6 +/- 2.36 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.2 sec.)
        Color of bars displayed: Yellow (blinking)        		 60 mm (2.4 in.) diameter pole
        MULTI-DISPLAY AND BUZZER (SIDE SCREEN DISPLAY*1 OR FULL SCREEN DISPLAY*2)

        Detection Range During Judgment Obstacle
        Close-range detection
        Within approx. 350 +/- 40 mm (13.8 +/- 1.57 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 350 +/- 40 to 450 +/- 50 mm (13.8 +/- 1.57 to 17.7 +/- 1.97 in.)        		 Buzzer: Sounds intermittently (ON: 0.1 sec. / OFF: 0.1 sec.)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 450 +/- 50 to 600 +/- 60 mm (17.7 +/- 1.97 to 23.6 +/- 2.36 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.2 sec.)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole

        *1: for 12.3 Inch Display*2: for 8 Inch Display

        HINT:

        Ultrasonic waves are used to measure the detection range; however, the detection range may vary depending on the ambient temperature.

    7. Rear center sonar display and buzzer operation check
      1. When the No. 4 ultrasonic sensors (rear center sonar) have detected an obstacle, check the display and check that the buzzer sounds.
        OPERATION CONDITION

        Power Switch Intuitive Parking Assist System Shift Lever Position Vehicle Speed
        On (IG) On R Less than approximately 10 km/h (6 mph) if speed is increasing

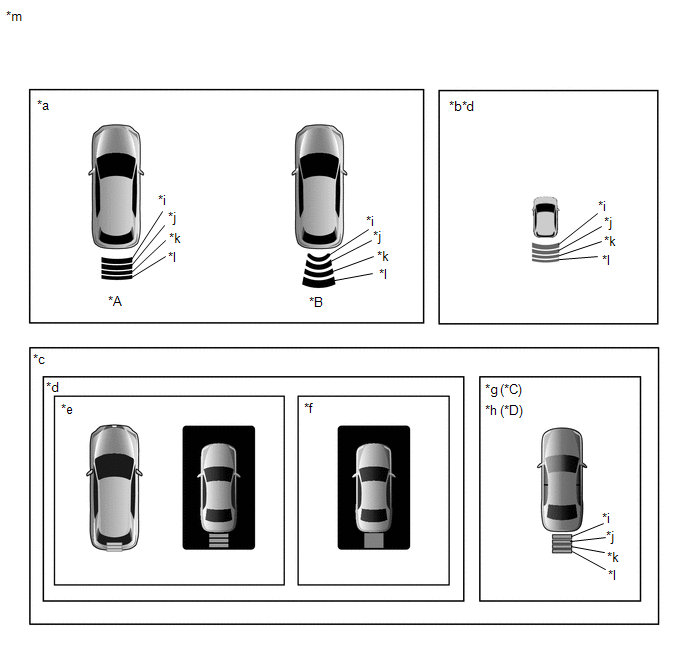

        GTY777859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for Optitron Meter Type *B for TFT Meter Type
        *C for 12.3 Inch Display *D for 8 Inch Display
        *a Multi-information Display *b Headup Display (w/ Headup Display System)
        *c Multi-display *d Cooperated Display
        *e w/ Panoramic View Monitor System *f w/ Parking Assist Monitor System
        *g Side Screen Display *h Full Screen Display
        *i Close-range Detection *j Medium-range Detection
        *k Long-range Detection *l Longest-range Detection
        *m Example (Rear Center Sonar) - -
        GTY589012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard

        MULTI-INFORMATION DISPLAY AND BUZZER

        Detection Range During Detection Obstacle
        Close-range detection
        Within approx. 350 +/- 40 mm (13.8 +/- 1.57 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (blinking)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 350 +/- 40 to 450 +/- 50 mm (13.8 +/- 1.57 to 17.7 +/- 1.97 in.)        		 Buzzer: Sounds intermittently (ON: 0.1 sec. / OFF: 0.1 sec.)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 450 +/- 50 to 600 +/- 60 mm (17.7 +/- 1.97 to 23.6 +/- 2.36 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.2 sec.)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Longest-range detection
        From approx. 600 +/- 60 to 1500 +/- 150 mm (23.6 +/- 2.36 to 59.1 +/- 5.91 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.5 sec.)
        Number of bars displayed: 4 (illuminated)        		 Wall
        HEADUP DISPLAY AND BUZZER (COOPERATED DISPLAY (W/ HEADUP DISPLAY SYSTEM))

        Detection Range During Detection Obstacle
        Close-range detection
        Within approx. 350 +/- 40 mm (13.8 +/- 1.57 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (blinking)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 350 +/- 40 to 450 +/- 50 mm (13.8 +/- 1.57 to 17.7 +/- 1.97 in.)        		 Buzzer: Sounds intermittently (ON: 0.1 sec. / OFF: 0.1 sec.)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 450 +/- 50 to 600 +/- 60 mm (17.7 +/- 1.97 to 23.6 +/- 2.36 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.2 sec.)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Longest-range detection
        From approx. 600 +/- 60 to 1500 +/- 150 mm (23.6 +/- 2.36 to 59.1 +/- 5.91 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.5 sec.)
        Number of bars displayed: 4 (illuminated)        		 Wall
        MULTI-DISPLAY AND BUZZER (COOPERATED DISPLAY)

        Detection Range During Detection Obstacle
        Close-range detection
        Within approx. 350 +/- 40 mm (13.8 +/- 1.57 in.)        		 Buzzer: Sounds continuously
        Color of bars displayed: Red (illuminated)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 350 +/- 40 to 450 +/- 50 mm (13.8 +/- 1.57 to 17.7 +/- 1.97 in.)        		 Buzzer: Sounds intermittently (ON: 0.1 sec. / OFF: 0.1 sec.)
        Color of bars displayed: Yellow (blinking)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 450 +/- 50 to 600 +/- 60 mm (17.7 +/- 1.97 to 23.6 +/- 2.36 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.2 sec.)
        Color of bars displayed: Yellow (blinking)        		 60 mm (2.4 in.) diameter pole
        Longest-range detection
        From approx. 600 +/- 60 to 1500 +/- 150 mm (23.6 +/- 2.36 to 59.1 +/- 5.91 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.5 sec.)
        Color of bars displayed: Yellow (blinking)        		 Wall
        MULTI-DISPLAY AND BUZZER (SIDE SCREEN DISPLAY*1 OR FULL SCREEN DISPLAY*2)

        Detection Range During Detection Obstacle
        Close-range detection
        Within approx. 350 +/- 40 mm (13.8 +/- 1.57 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Medium-range detection
        From approx. 350 +/- 40 to 450 +/- 50 mm (13.8 +/- 1.57 to 17.7 +/- 1.97 in.)        		 Buzzer: Sounds intermittently (ON: 0.1 sec. / OFF: 0.1 sec.)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Long-range detection
        From approx. 450 +/- 50 to 600 +/- 60 mm (17.7 +/- 1.97 to 23.6 +/- 2.36 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.2 sec.)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole
        Longest-range detection
        From approx. 600 +/- 60 to 1500 +/- 150 mm (23.6 +/- 2.36 to 59.1 +/- 5.91 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 sec. / OFF: 0.5 sec.)
        Number of bars displayed: 4 (illuminated)        		 Wall

        *1: for 12.3 Inch Display*2: for 8 Inch Display

        HINT:

        Ultrasonic waves are used to measure the detection range; however, the detection range may vary depending on the ambient temperature.

scientia non olet · About LEMON Manuals
