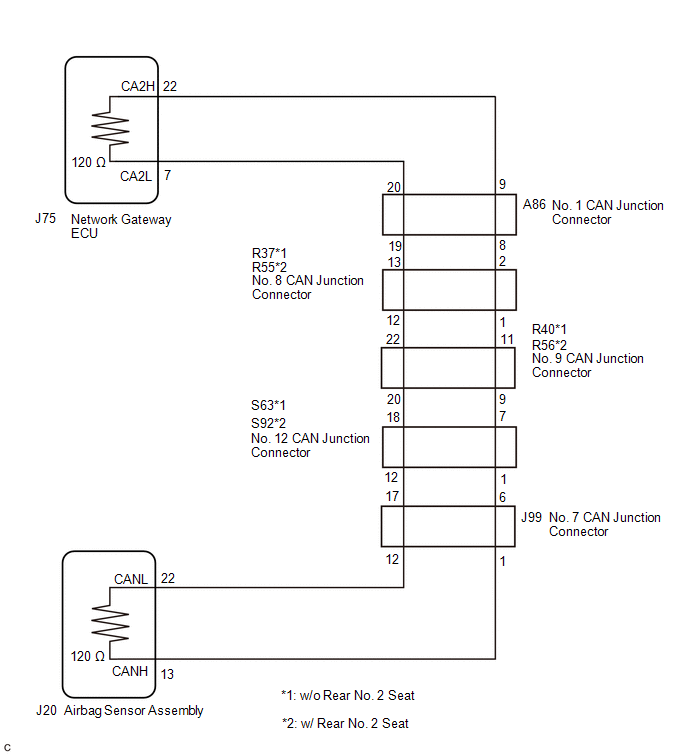

Open in Bus 4 Main Bus Line [10/2015 - 08/2019]: Wiring Diagram

GTY954807

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
