On-Vehicle Inspection [09/2015 - 12/2017]: Procedure

  1. INSPECT FUEL CUT OPERATION
    WARNING:

    To prevent injury due to contact with an operating V-ribbed belt or cooling fan, keep your hands and clothing away from the V-ribbed belt and cooling fans when working in the engine compartment with the engine running or the engine switch on (IG).

    1. Start the engine.
    2. Warm up the engine.
    3. Increase the engine speed to approximately 3500 rpm.

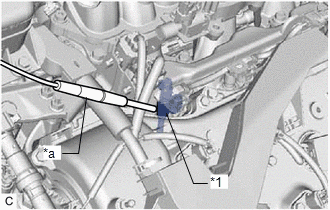

    4. Use a sound scope to check for fuel injector assembly operating sounds.
      GTY634816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Injector Assembly
      *a Sound Scope
    5. When the accelerator pedal is fully released, check that fuel injector assembly operating sounds stop momentarily and then resume.

      Standard

      Item Specified Condition
      Fuel cut-off engine speed 2200 rpm or higher
      Fuel injection restart engine speed 1200 rpm

      If the result is not as specified, check the fuel injector assemblies, wire harness and ECM.

  2. VISUALLY CHECK HOSES, CONNECTIONS AND GASKETS
    1. Visually check that the hoses, connections and gaskets have no cracks, leaks or damage.
      NOTE:
      • Detachment or other problems with the engine oil level dipstick, oil filler cap sub-assembly, ventilation hose or other components may cause the engine to run improperly.
      • Air suction caused by disconnections, looseness or cracks in any part of the air induction system between the throttle body with motor assembly and cylinder head sub-assembly will cause engine failure or engine malfunctions.

      If any defects are found, replace parts as necessary.

  3. INSPECT EVAPORATIVE EMISSION CONTROL SYSTEM
    WARNING:

    To prevent injury due to contact with an operating V-ribbed belt or cooling fan, keep your hands and clothing away from the V-ribbed belt and cooling fans when working in the engine compartment with the engine running or the engine switch on (IG).

    1. Connect the Techstream to the DLC3.
    2. Start the engine.
    3. Turn the Techstream on.

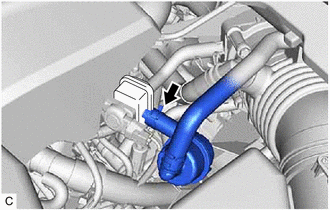

    4. Slide the clip and disconnect the fuel vapor feed hose from the purge valve (purge VSV).
      GTY627955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Enter the following menus: Powertrain / Engine / Active Test / Activate the Evap Purge VSV.

      Powertrain > Engine > Active Test

      Tester Display
      Activate the EVAP Purge VSV
    6. Check that vacuum occurs at the purge valve (purge VSV) port.
    7. If vacuum does not occur, check the following items.
    8. Exit Active Test mode and connect the fuel vapor feed hose assembly to the purge valve (purge VSV) and slide the clip to secure it.

      If the result is not as specified, replace the purge valve (purge VSV), wire harness or ECM.

      Refer to PROCEDURE - Step 1

    9. Enter the following menus: Powertrain / Engine / Data List / EVAP (Purge) VSV.

      Powertrain > Engine > Data List

      Tester Display
      EVAP (Purge) VSV
    10. Warm up the engine and drive the vehicle.
    11. Confirm that the purge valve (purge VSV) opens.

      If the result is not as specified, replace the purge valve (purge VSV), wire harness or ECM.

  4. CHECK FUEL TANK AND VENT LINE

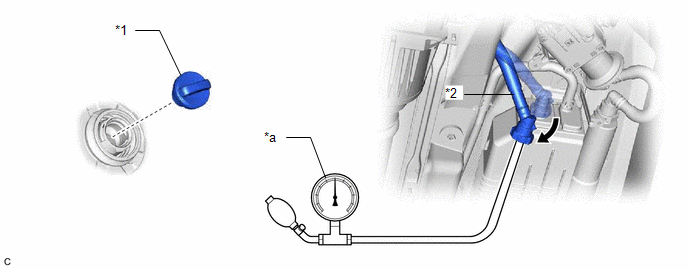

    1. Disconnect the vent line hose from the canister (charcoal canister assembly).
      GTY620302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Tank Cap Assembly *2 Vent Line Hose
      *a Pressure Gauge - -
    2. Connect a pressure gauge to the vent line hose.
    3. Apply 4 kPa (0.04 kgf/cm2 , 0.6 psi) of pressure to the vent line of the fuel tank assembly.

      HINT:

      Perform this inspection with the fuel tank assembly less than 90% full. When the fuel tank assembly is full, the fuel fill check valve closes and the pressure is released through the 2 mm (0.0787 in.) orifice. As a result, when the fuel tank cap assembly is removed, the pressure does not decrease smoothly.

    4. Check that the fuel tank assembly pressure is maintained for some time and does not decrease immediately.

      HINT:

      If the pressure decreases immediately, one of the following may apply:

      • The fuel tank cap assembly is not completely tightened.
      • The fuel tank cap assembly is damaged.
      • Air is leaking from the vent line.
      • The fuel tank assembly is damaged.
    5. Remove the fuel tank cap assembly and check that the pressure is released smoothly.

      If the pressure is not released smoothly, replace the fuel tank assembly.

    6. Reconnect the vent line hose to the canister (charcoal canister assembly).
  5. INSPECT AIR LINE
    1. Disconnect the air line tube from the charcoal canister leak detection pump sub-assembly.
      GTY629715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Air Line Tube
      *a Air
    2. Check that air flows freely into the air line.

      If air does not flow freely into the air line, repair or replace the air line tube.

    3. Connect the air line tube to the charcoal canister leak detection pump sub-assembly.
