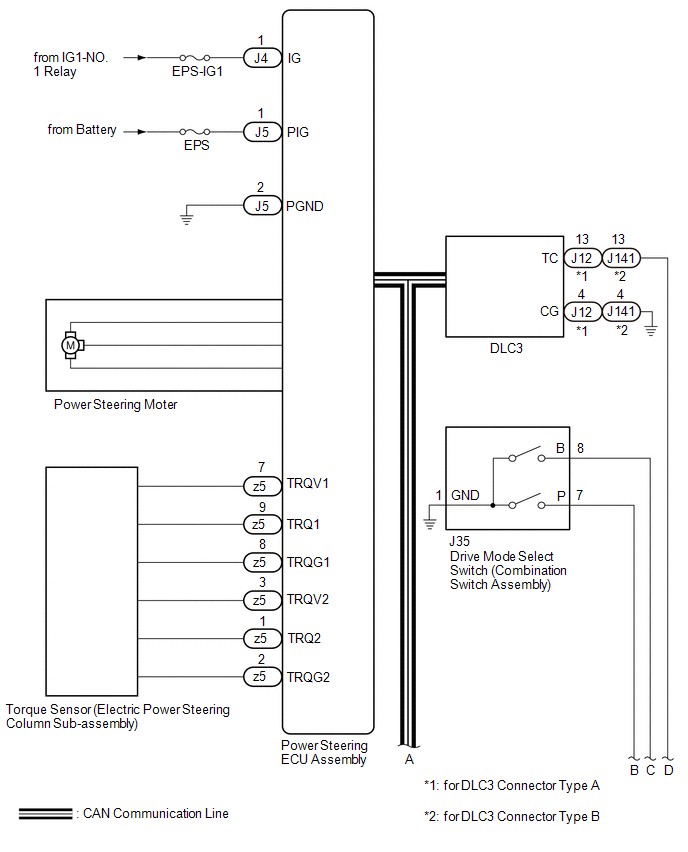

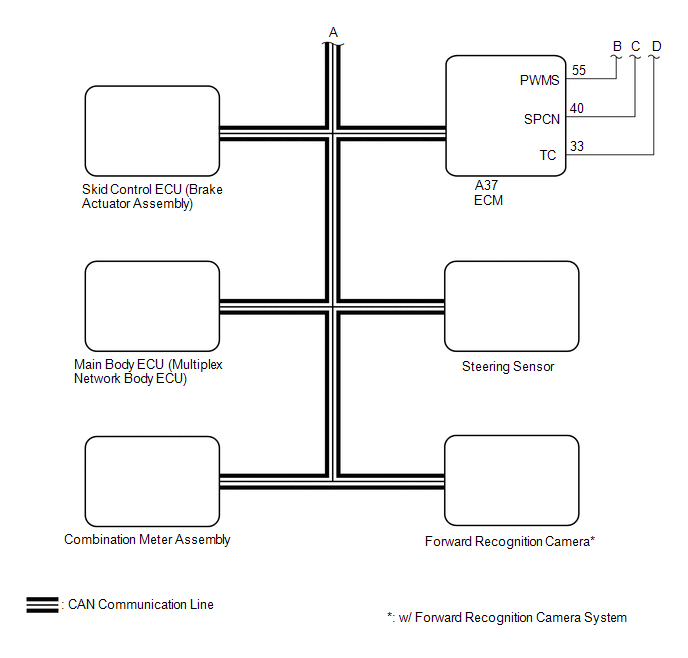

Home >> Lexus >> 2019 >> RX 350 Base, AWD >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering System - Diagnostics Introduction >> Power Steering System >> System Diagram [09/2015 - 08/2019] >> System Diagram [09/2015 - 08/2019]
