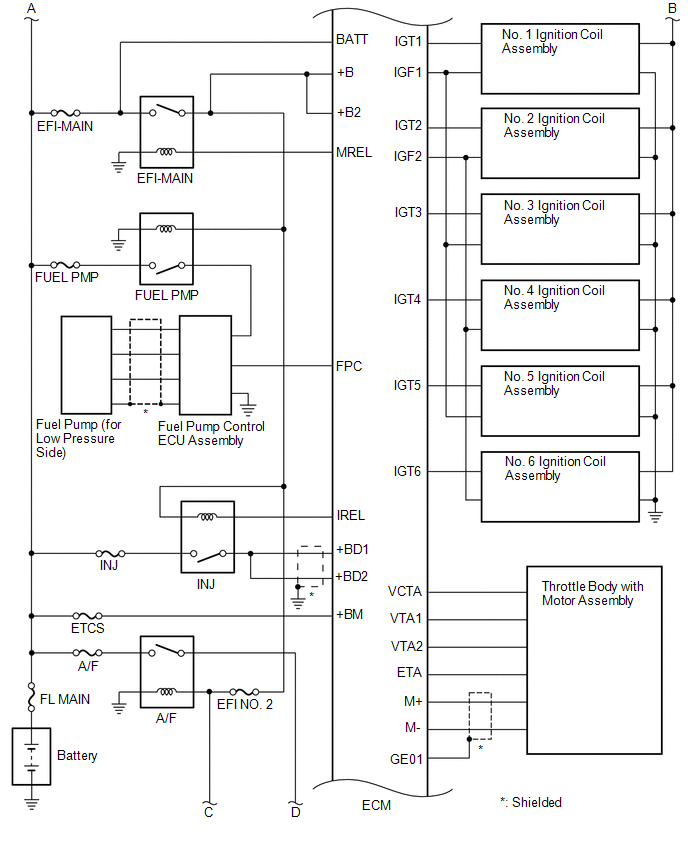

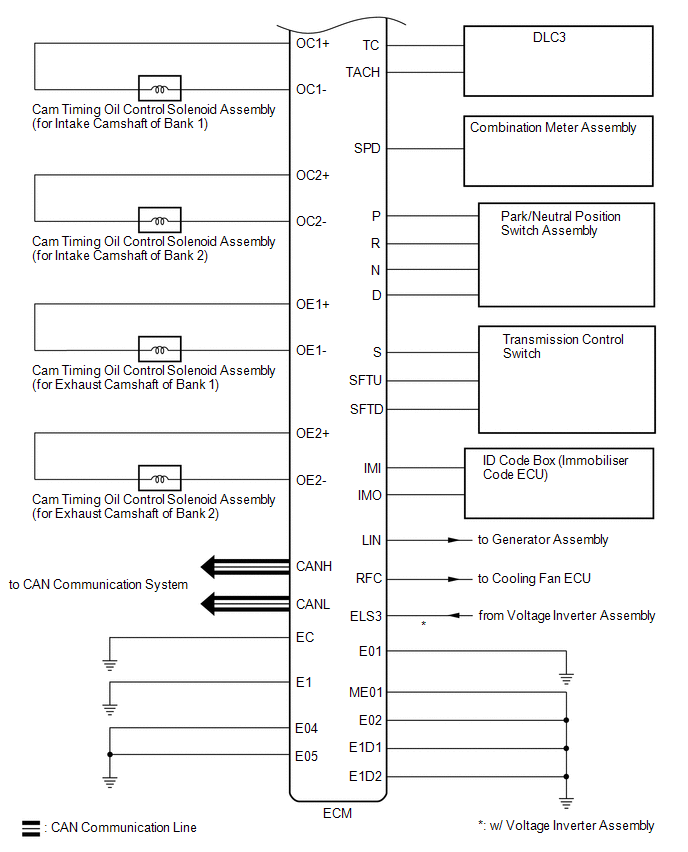

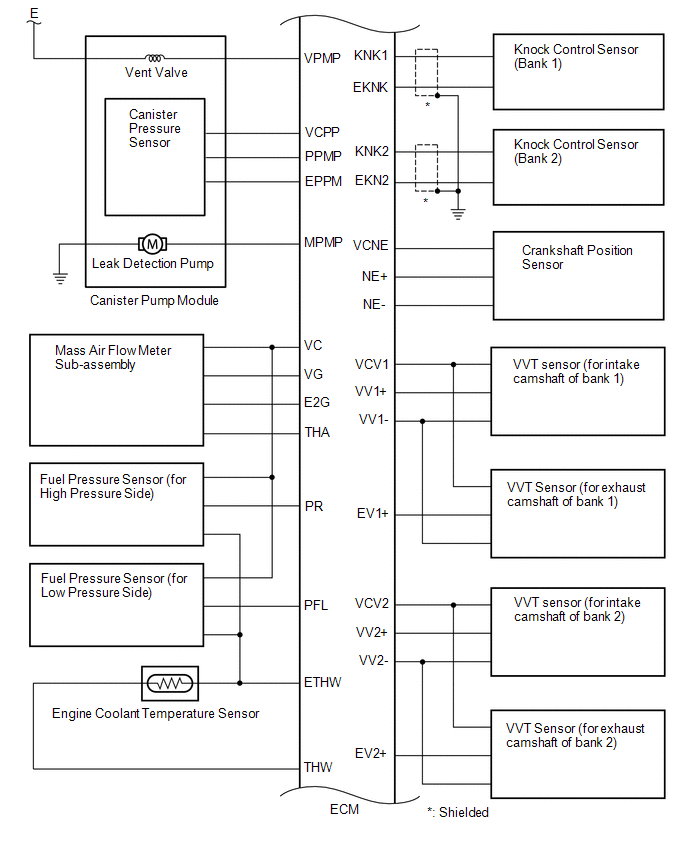

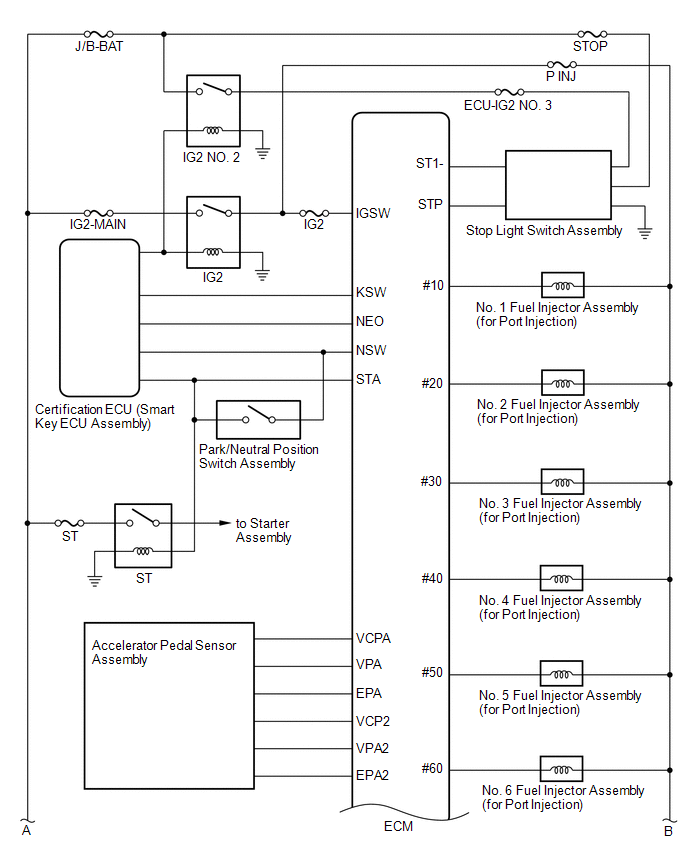

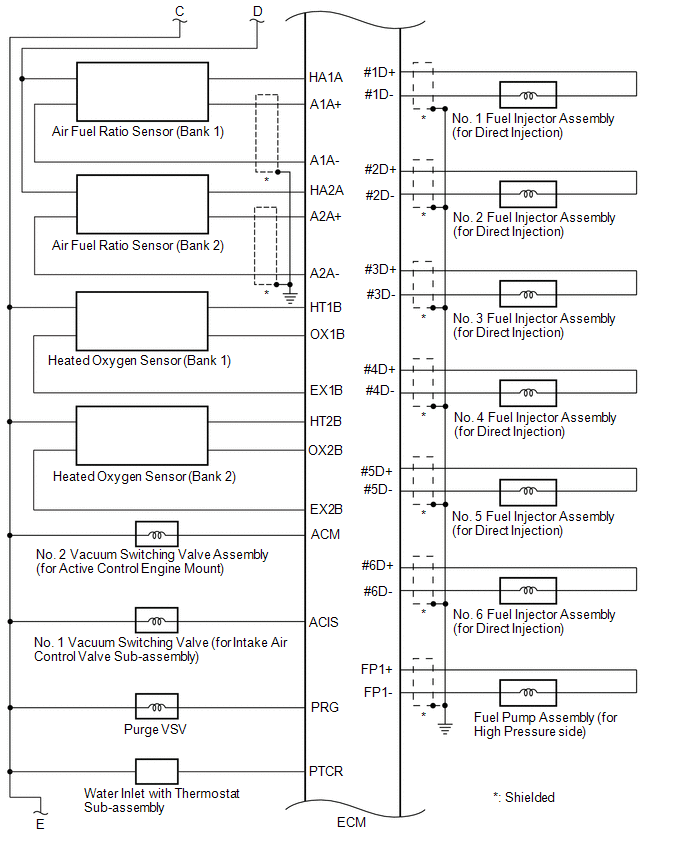

Home >> Lexus >> 2019 >> RX 350 Base, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Diagnostics - Introduction (1 Of 5) >> SFI System >> System Diagram [09/2015 - 08/2019] >> System Diagram [09/2015 - 08/2019]
