Disassembly [11/2017 - 01/2023]: Procedure

  1. REMOVE NO. 1 MILLIMETER WAVE RADAR SENSOR BRACKET

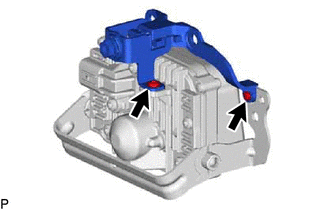

    1. Remove the 2 screws and No. 1 millimeter wave radar sensor bracket.
      GTY603108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
