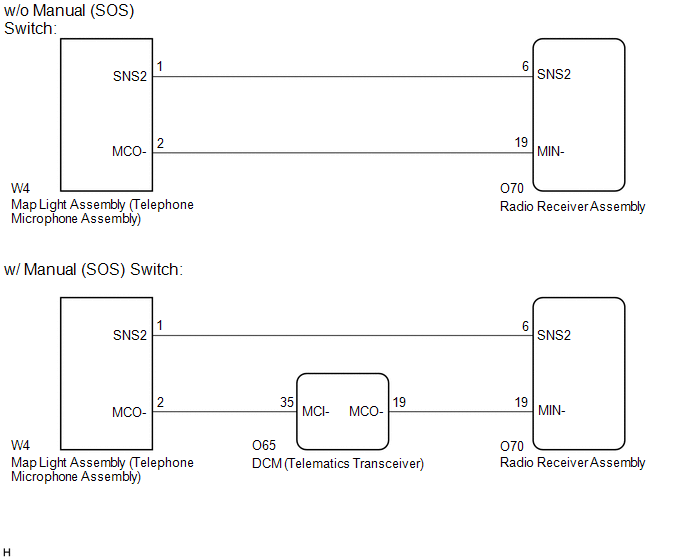

DTC B1579: Voice Recognition Microphone Disconnected [09/2014 - 11/2017]: Wiring Diagram

GTY504537

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
