Removal [09/2014 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 1 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 1 [11/2017 - ]

  2. REMOVE NO. 3 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

    Refer to PROCEDURE - Step 4 [09/2014 - 10/2018] , or refer to PROCEDURE - Step 4 [10/2018 - ]

  3. REMOVE LICENSE PLATE LIGHT ASSEMBLY

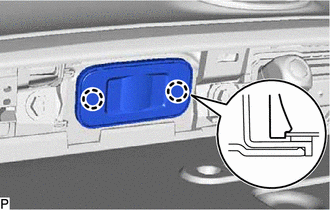

    1. Disengage the 2 claws to disconnect the license plate light assembly.
      GTY501031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the license plate light assembly.
