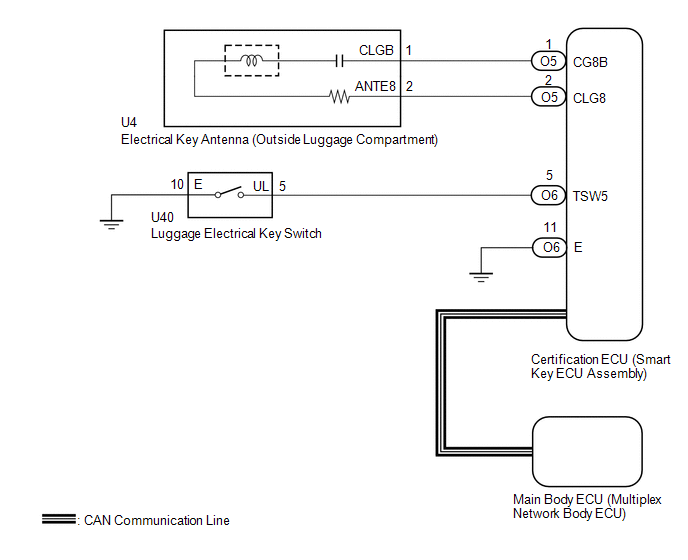

Luggage Compartment Door Entry Unlock Function does not Operate when Key is Outside Luggage Compartment [09/2014 - ]: Wiring Diagram

GTY519954

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
