Removal [10/2014 - ]: Procedure

  1. REMOVE INTAKE MASS AIR FLOW METER SUB-ASSEMBLY
    1. Disconnect the intake mass air flow meter sub-assembly connector.

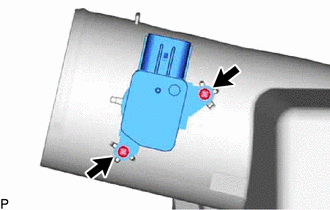

      GTY506723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and intake mass air flow meter sub-assembly.
