Removal [10/2014 - ]: Procedure

  1. REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY
    NOTE:

    This accelerator pedal does not require lubrication.

    Do not apply oil or other lubrication to the accelerator pedal sensor assembly.

    If applied, the accelerator pedal sensor assembly must be replaced.

    1. Disconnect the accelerator pedal sensor connector.

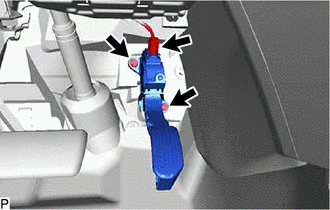

      GTY517162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and accelerator pedal sensor assembly.
      NOTE:
      • Avoid physical shocks to the accelerator pedal sensor assembly.
      • Do not disassemble the accelerator pedal sensor assembly.
