Removal [09/2015 - ]: Procedure

  1. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 3

  2. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  3. REMOVE AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 10

  4. REMOVE CAMSHAFT POSITION SENSOR

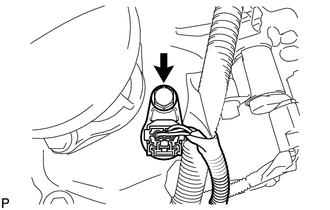

    GTY588687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.
  5. REMOVE VVT SENSOR
    1. Disconnect the 4 sensor connectors.

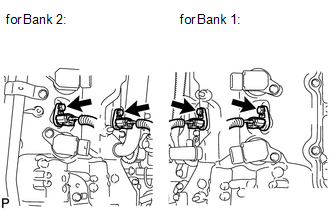

      GTY610925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and 4 sensors.
