Power Door Lock Control System (Diagnostics - Introduction)
>>
Power Door Lock Control System
>>
System Diagram [09/2015 - 08/2017]
>>
System Diagram [09/2015 - 08/2017]
System Diagram [09/2015 - 08/2017]

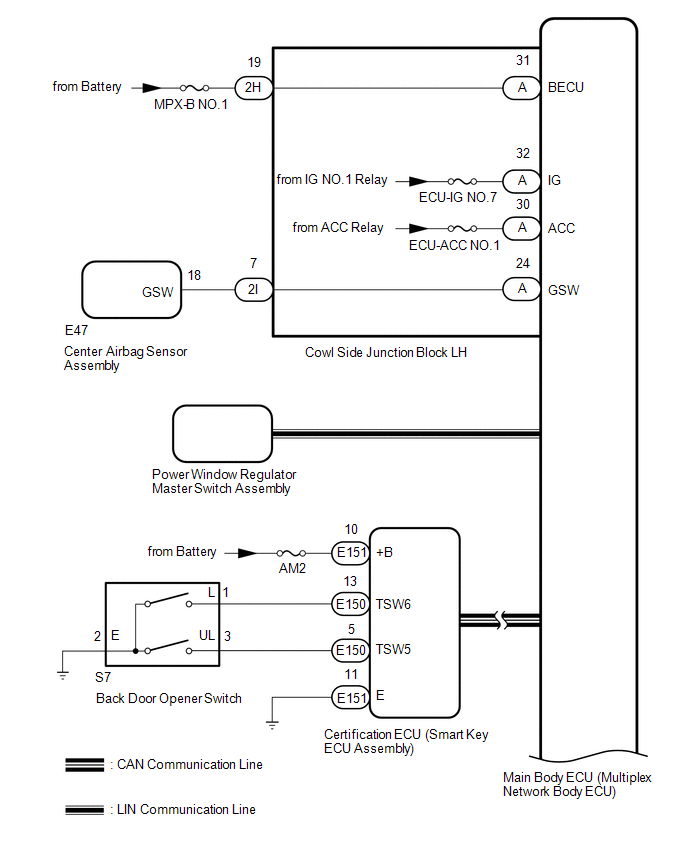

Fig 1: Power Door Lock Control System Wiring Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

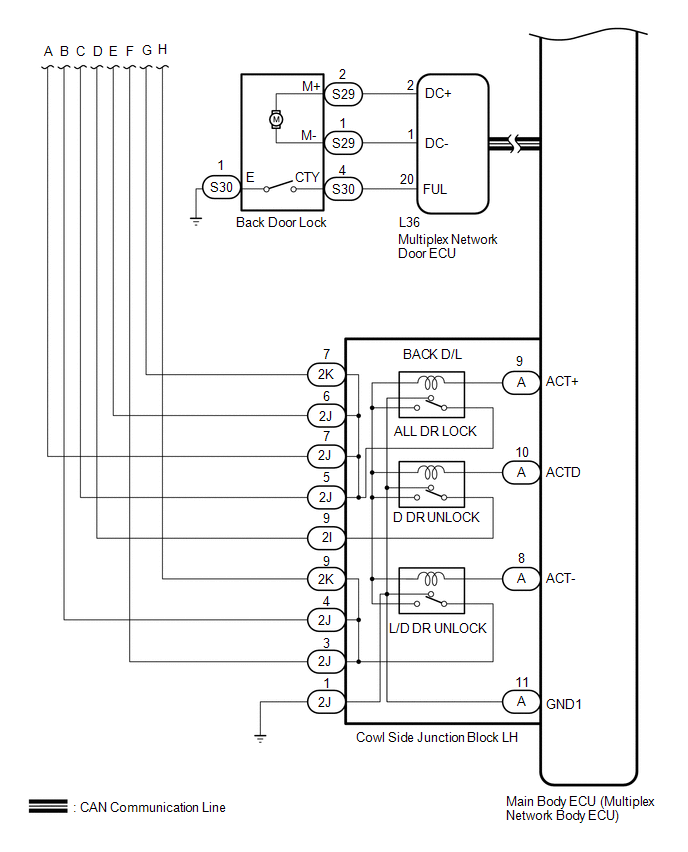

Fig 2: Power Door Lock Control System Wiring Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

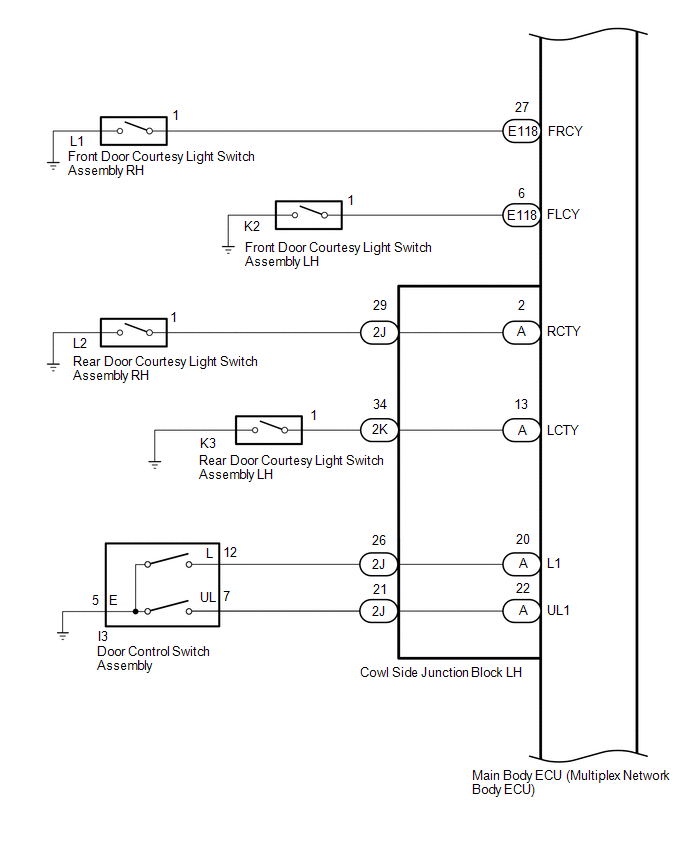

Fig 3: Power Door Lock Control System Wiring Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

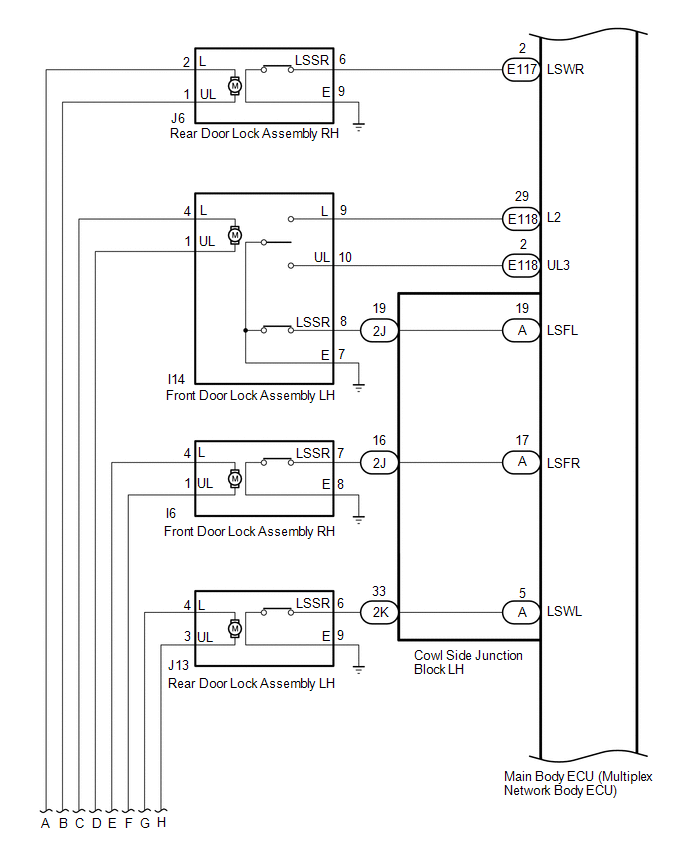

Fig 4: Power Door Lock Control System Wiring Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
