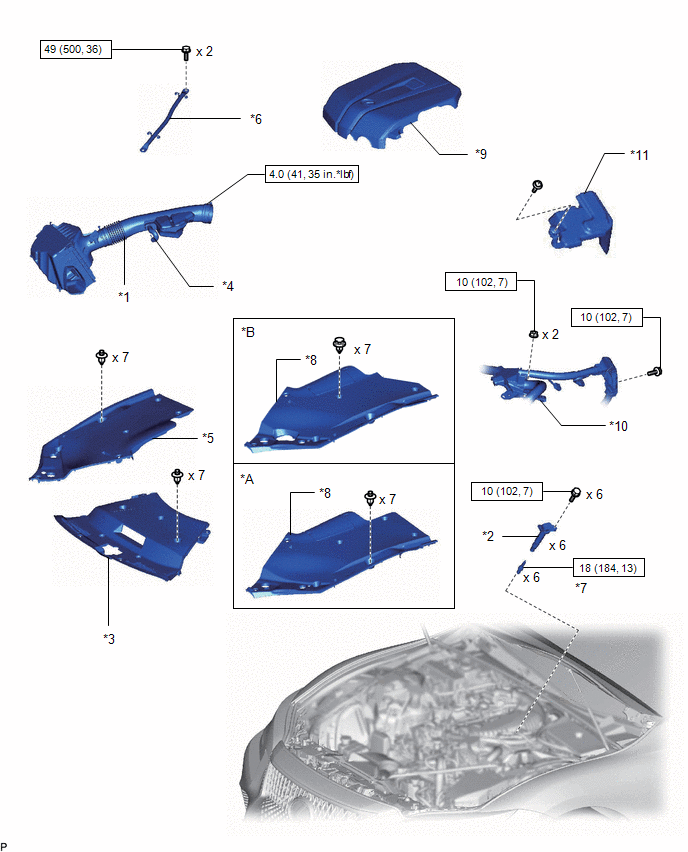

Components [10/2020 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Type A | *B | for Type B |
| *1 | AIR CLEANER WITH AIR CLEANER HOSE | *2 | IGNITION COIL ASSEMBLY |
| *3 | LOWER RADIATOR AIR DEFLECTOR | *4 | NO. 2 PCV HOSE |
| *5 | RADIATOR COVER PLATE | *6 | RADIATOR SUPPORT TO CROSS MEMBER BRACE SUB-ASSEMBLY RH |
| *7 | SPARK PLUG | *8 | UPPER RADIATOR SUPPORT SEAL |
| *9 | V-BANK COVER SUB-ASSEMBLY | *10 | WIRE HARNESS |
| *11 | NO. 1 ENGINE COVER SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
