Components [10/2017 - 10/2020]

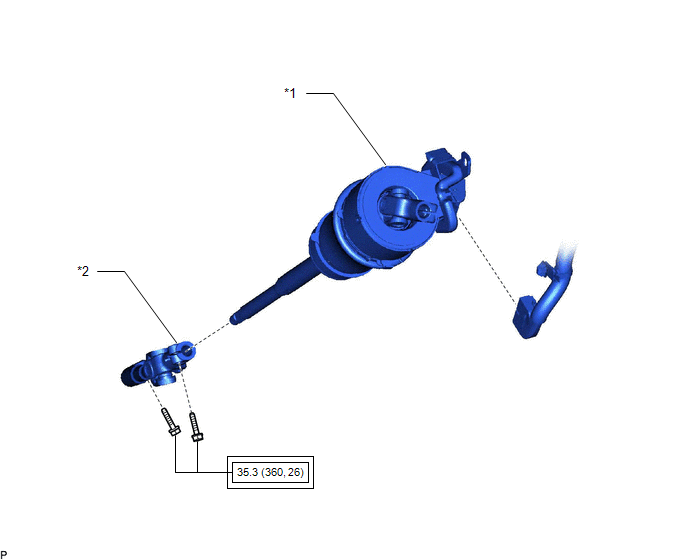

Fig 1: Steering Actuator Replacement Components With Torque Specifications [10/2017 - 10/2020]
GTY803290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 STEERING ACTUATOR ASSEMBLY *2 STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) - -
