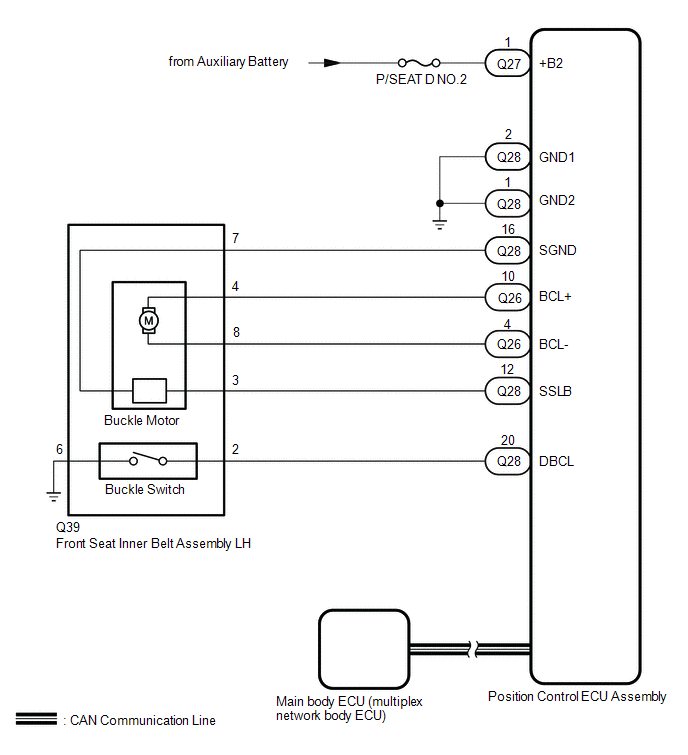

Driver Seat Easy Access Buckle Function does not Operate [10/2017 - 10/2023]: Wiring Diagram

GTY828146

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
