Installation [10/2020 - 11/2021]: Procedure

WARNING: This page is about a different car, the 2024 Lexus LS 500, 2023 Lexus LS 500, 2022 Lexus LS 500, and 2021 Lexus LS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    1. Attach the guide.

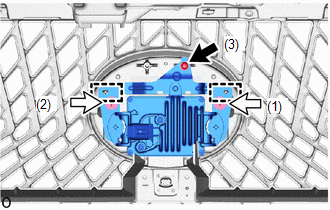

      Fig 1: Millimeter Wave Radar Sensor Assembly Bolts And Screw Tightening Sequence
      GTY830353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Bolt
    2. Temporarily install the millimeter wave radar sensor assembly with the 2 bolts and screw.
    3. Tighten the 2 bolts and screw in the order shown in the illustration.

      Bolt

      Torque: 2.5 N.m (25 kgf/cm, 22 in.lbf)

  2. INSTALL FRONT BUMPER ASSEMBLY
    1. for Sport Package:

      Refer to INSTALLATION [10/2020 - 11/2021]

    2. except Sport Package:

      Refer to INSTALLATION [10/2020 - 11/2021]

  3. ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    1. When the millimeter wave radar sensor assembly is replaced, adjust the millimeter wave radar sensor assembly.

      Refer to ADJUSTMENT [10/2020 - 11/2021]
