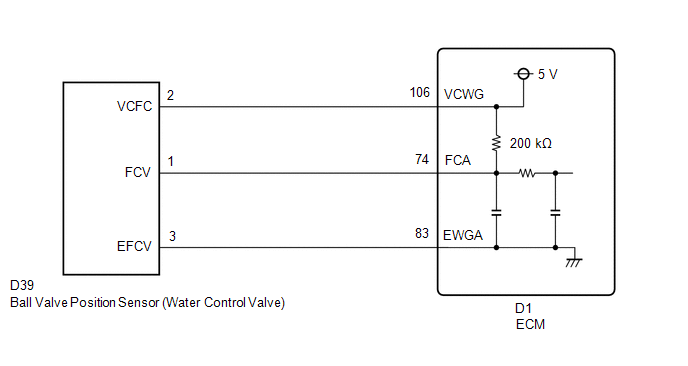

DTC P16B5-11: Multi Flow Control Valve Sensor Circuit Short to Ground [12/2017 - ]: Wiring Diagram

GTY794180

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
