Disassembly [12/2017 - 09/2018]: Procedure

  1. REMOVE NO. 1 MILLIMETER WAVE RADAR SENSOR BRACKET (for Stereo Camera Type)
    NOTE:

    Do not disassemble the No. 1 millimeter wave radar sensor bracket except when replacing it.

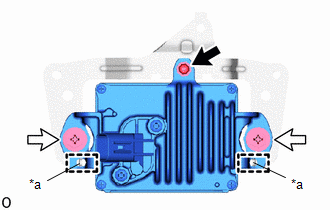

    1. Remove the 2 bolts and screw.
      GTY819306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Guide
      Screw
      Bolt
    2. Detach the guide and remove the No. 1 millimeter wave radar sensor bracket.
  2. REMOVE NO. 1 MILLIMETER WAVE RADAR SENSOR BRACKET (for Mono Camera Type)
    NOTE:
    • Do not disassemble the No. 1 millimeter wave radar sensor bracket except when replacing it.
    • If the beam axis change mechanism is damaged or the No. 1 millimeter wave radar sensor bracket is deformed, replace it.

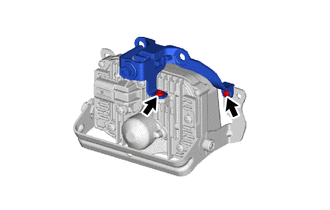

    1. Remove the 2 screws and No. 1 millimeter wave radar sensor bracket.
      GTY794795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
