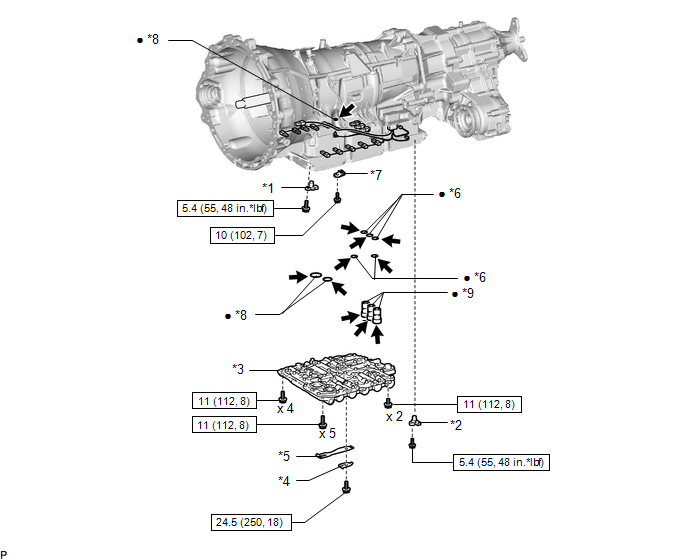

Components [12/2017 - ]
| *1 | TRANSMISSION REVOLUTION SENSOR (NT) | *2 | TRANSMISSION REVOLUTION SENSOR (SP2) |
| *3 | TRANSMISSION VALVE BODY ASSEMBLY | *4 | MANUAL DETENT SPRING COVER |
| *5 | MANUAL DETENT SPRING SUB-ASSEMBLY | *6 | GASKET |
| *7 | LOCK PLATE | *8 | O-RING |
| *9 | BRAKE DRUM GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |
