Removal [12/2017 - 09/2018]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [12/2017 - 10/2020]
- AIR SUSPENSION CONTROL PROHIBITED (w/ Air Suspension)
Refer to PRECAUTION [12/2017 - ]
- REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 24
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 3
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [12/2017 - 09/2018]
- REMOVE TOOL BOX
Refer to PROCEDURE - Step 27
- REMOVE LUGGAGE COMPARTMENT FLOOR MAT
Refer to PROCEDURE - Step 23
- REMOVE LOWER INNER LUGGAGE COMPARTMENT TRIM COVER
Refer to PROCEDURE - Step 28
- REMOVE BATTERY CARRIER CATCH BRACKET SUB-ASSEMBLY
Refer to PROCEDURE - Step 20
- REMOVE NO. 1 FLOOR UNDER COVER
Refer to PROCEDURE - Step 1
- REMOVE REAR WHEELS
Refer to REMOVAL [12/2017 - 10/2023]
- DISCONNECT REAR STEERING TIE ROD ASSEMBLY LH

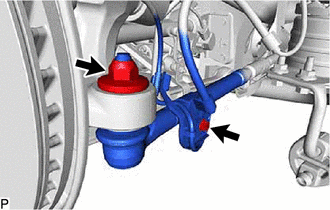

Remove the nut.
- Remove the bolt and disconnect the skid control sensor wire.

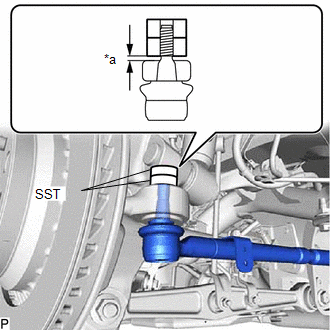

- Install 2 spacers (SST spacer B) as shown in the illustration.
- SST: 09960-20010
- 09961-02060
*a 1 mm (0.0394 in.) NOTE:- Be sure to install SST to prevent the spacer of the rear axle carrier sub-assembly from coming off.
- Make sure that the clearance between the rear axle assembly and spacers (SST spacer B) is 1 mm (0.0394 in.) or more to prevent damage to SST.
- SST: 09960-20010

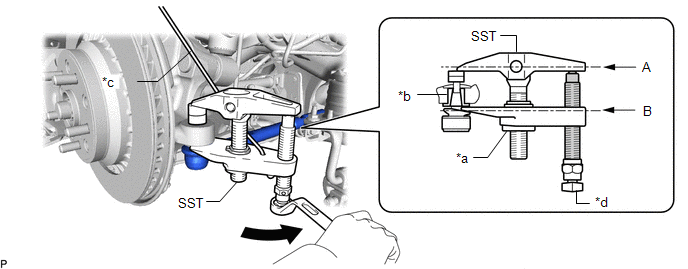

- Using SST, separate the rear steering tie rod assembly LH from the rear axle carrier sub-assembly as shown in the illustration.
- SST: 09960-20010
- 09961-02010
*a Nut *b Spacer *c Tie string without any slack *d Place wrench here Turn Molybdenum Grease WARNING:Apply molybdenum grease to the threads and the tip of SST bolt.
NOTE:- Install SST so that (A) and (B) shown in the illustration are parallel. Otherwise, the ball joint dust cover may be damaged.
- Be sure to place the wrench on the part shown in the illustration.
- Be sure to tighten the string firmly to secure SST to the rear upper control arm assembly to prevent SST from falling off.
- Make sure that SST is securely positioned on the spacer.
- Do not damage the rear steering tie rod assembly LH ball joint dust cover.
- If the spacer has come off, replace the rear axle carrier sub-assembly and rear steering link assembly with a new one.
- SST: 09960-20010
- DISCONNECT REAR STEERING TIE ROD ASSEMBLY RH
HINT:
Perform the same procedure as for the LH side.
- REMOVE EXHAUST TAILPIPE ASSEMBLY
Refer to REMOVAL [12/2017 - ]
- REMOVE REAR STEERING LINK ASSEMBLY

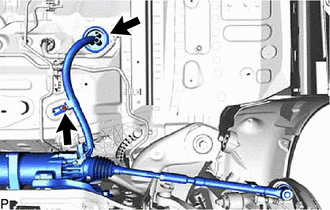

- Disconnect the 2 connectors from the rear steering control ECU.

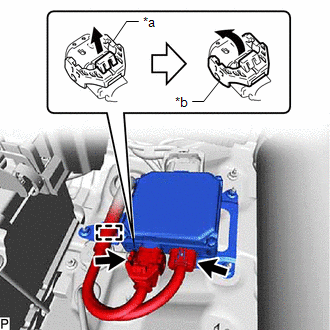

*a Lock of the Lock Lever *b Lock Lever HINT:
When disconnecting the connector with lock lever, pull out the lock of the lock lever and turn the lock lever as shown in the illustration.
- Disengage the clamp.
Remove the nut.
- Disconnect the grommet.

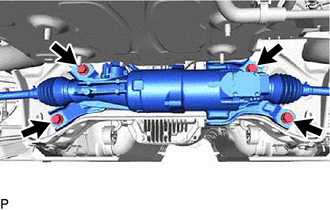

- Remove the 4 bolts and rear steering link assembly.NOTE:
Do not drop the rear steering link assembly.
- Disconnect the 2 connectors from the rear steering control ECU.
