Installation [12/2017 - 10/2020]: Procedure

  1. INSTALL TILT AND TELESCOPIC SWITCH
    1. Engage the claw to install the tilt and telescopic switch.
    2. Connect the tilt and telescopic connector to the tilt and telescopic switch.
    3. Connect the airbag connector to the spiral cable with sensor sub-assembly.
  2. INSTALL LOWER STEERING COLUMN COVER

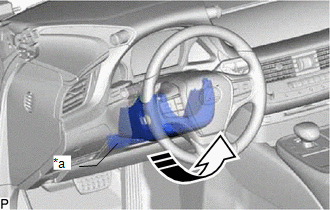

    1. Insert the lower steering column cover in the direction indicated by the arrow.
      NOTE:

      Do not damage the tilt and telescopic switch and felt.

      GTY818162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Felt
      Install in this Direction
    2. Engage the 4 claws to install the lower steering column cover to the upper steering column cover.
    3. Install the 3 screws.
  3. CONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [12/2017 - 09/2018] , or refer to INITIALIZATION [09/2018 - 10/2020]

  4. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  5. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
    1. Reset the auto tilt away function setting to the previous condition by changing the customize parameter.

      Refer to CUSTOMIZE PARAMETERS [12/2017 - ]

  6. PERFORM VARIABLE GEAR RATIO STEERING SYSTEM CALIBRATION (w/ VGRS)

    Refer to CALIBRATION [12/2017 - 10/2023]
