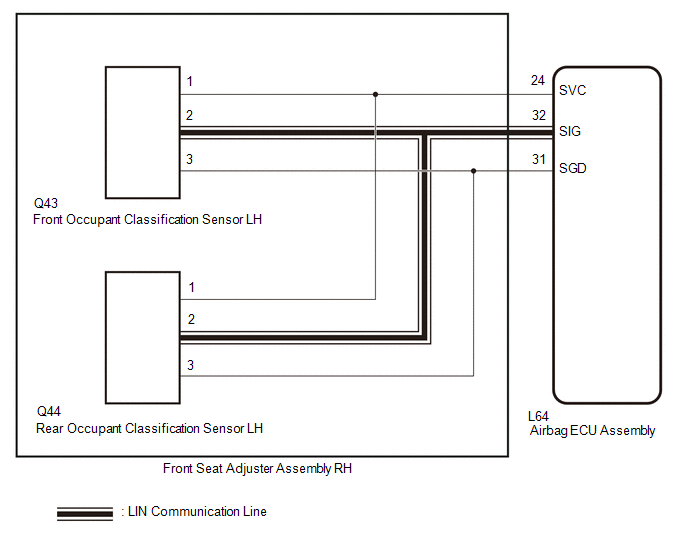

LIN Communication Circuit [10/2023 - ]: Wiring Diagram

GTY1233491

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
