Engine Room Relay Block No. 2 - Front Fender Apron LH: Notes

Engine Compartment Right  (See Figure)

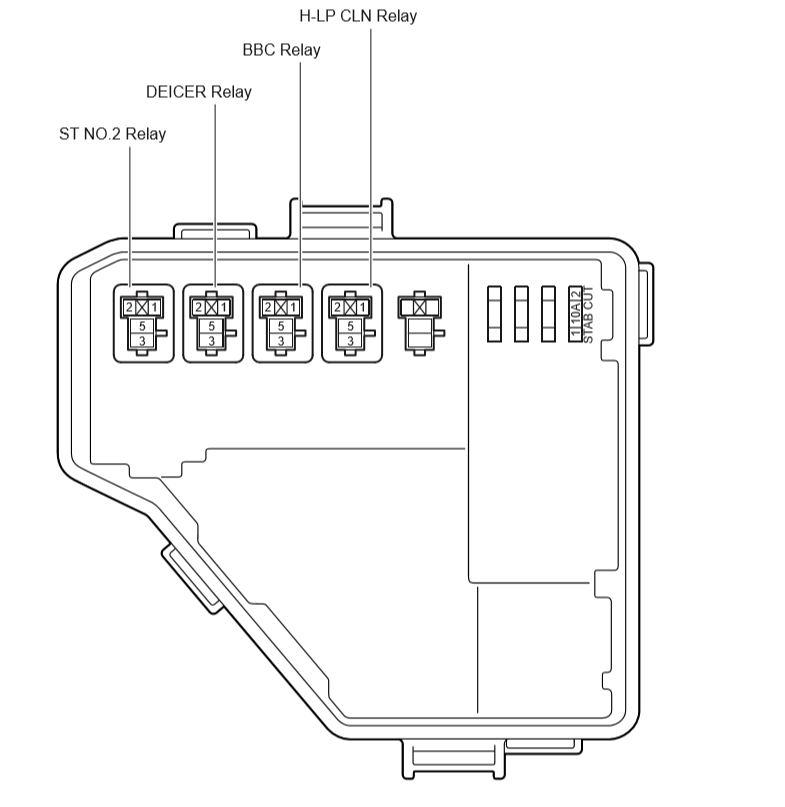

Fig 1: Engine Room R/B & J/B No. 2 Fuse & Relay Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B NO. 2 AND J/B NO. 2 RELAY IDENTIFICATION

RELAY DESCRIPTION
ST NO. 2 Relay
DEICER
BBC Relay
H-LP CLN Relay

Engine Room R/B & J/B No. 2 Fuse Identification Legend

Fuse
10A	STAB CUT
