Engine Room Relay Block No. 2 Inner Circuit

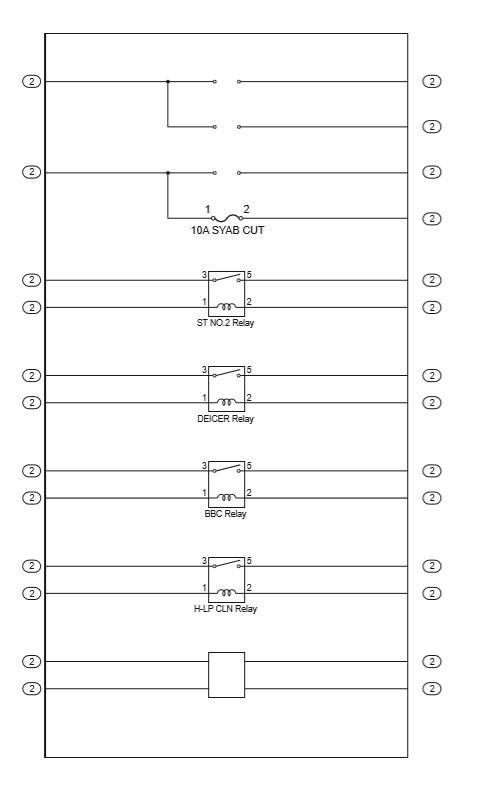

Fig 1: Engine Room R/B No. 2 With Relays
G00584582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM R/B NO. 2 INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
ST NO. 2 Relay
DEICER Relay
BBC Relay
H-LP CLN Relay
